3.0" Heavy Duty 4" & 6" Offset Hitch
3.0" Heavy Duty 4" & 6" Offset Hitch Images and Media
3.0" Heavy Duty 4" & 6" Offset Hitch Images and Media
What is the Difference?
HEAVY DUTY
3.0" Heavy Duty 4" & 6" Offset Hitch
Starts at $489
22,000 LBS Towing Capacity
3,000 LBS Tongue Weight Capacity
Shank Sizes: 2” / 2.5” / 3"
Drop/Rise: 4” - 20”
EXTREME DUTY
3.0" Extreme Duty 4" & 6" Offset Hitch
Starts at $539
36,000 LBS Towing Capacity
6,000 LBS Tongue Weight Capacity
Shank Sizes: 2” / 2.5” / 3"
Drop/Rise: 4” - 12”

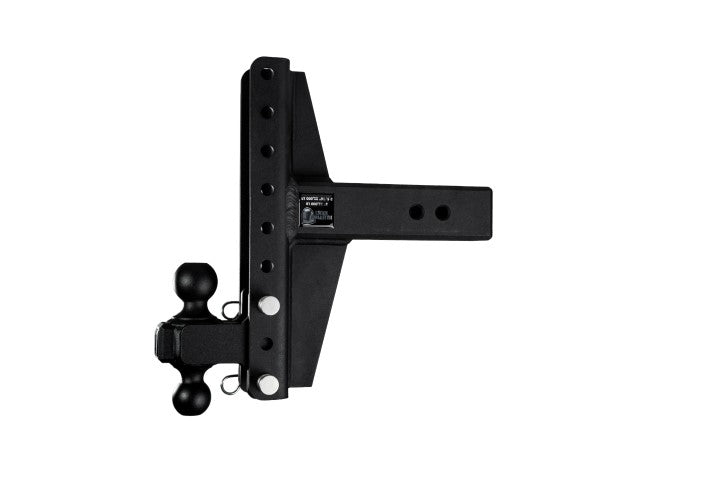

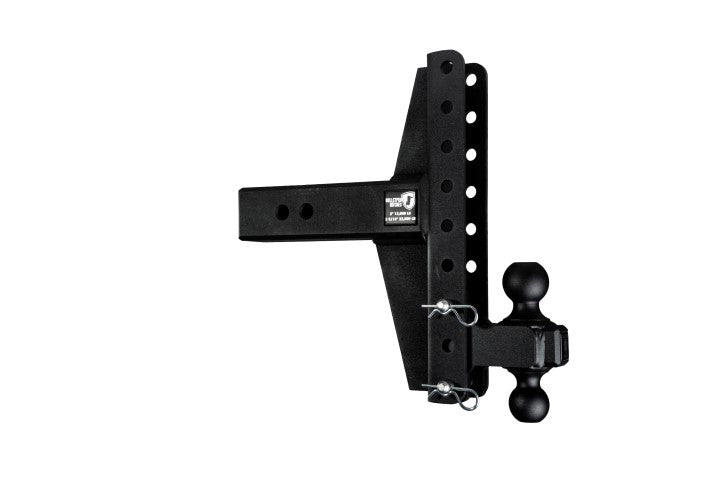

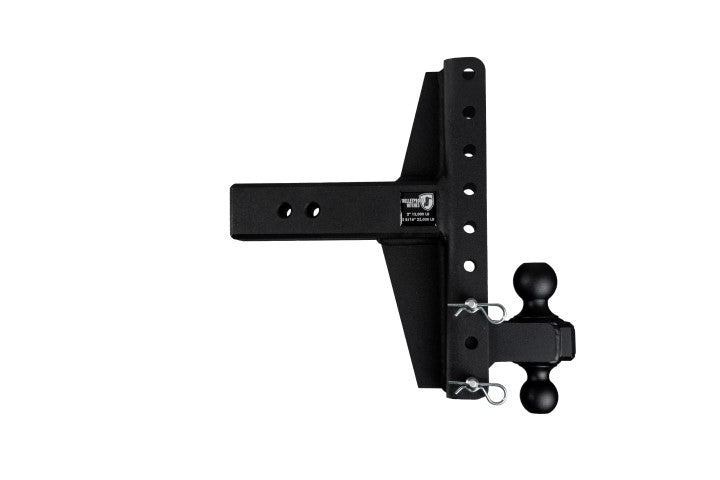

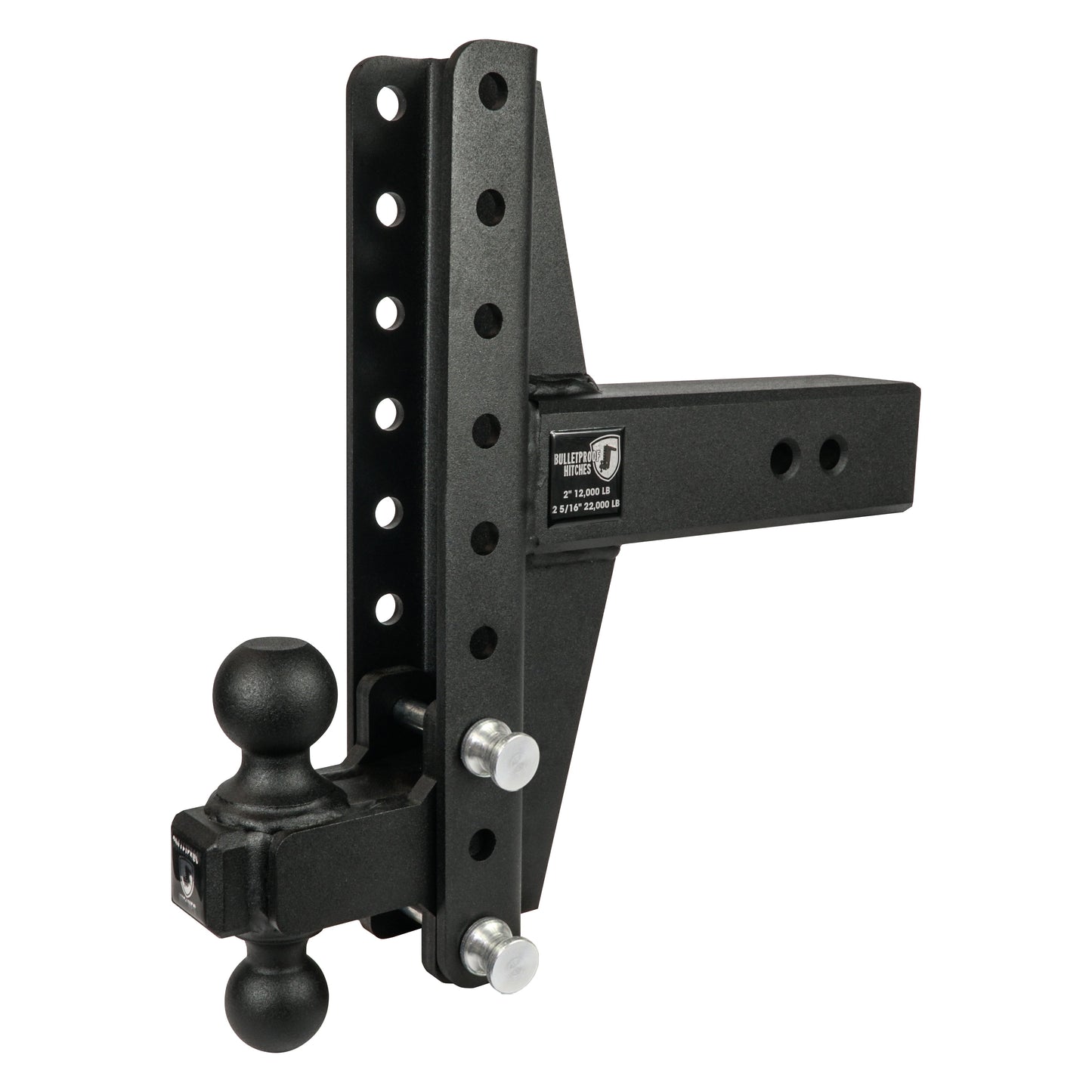

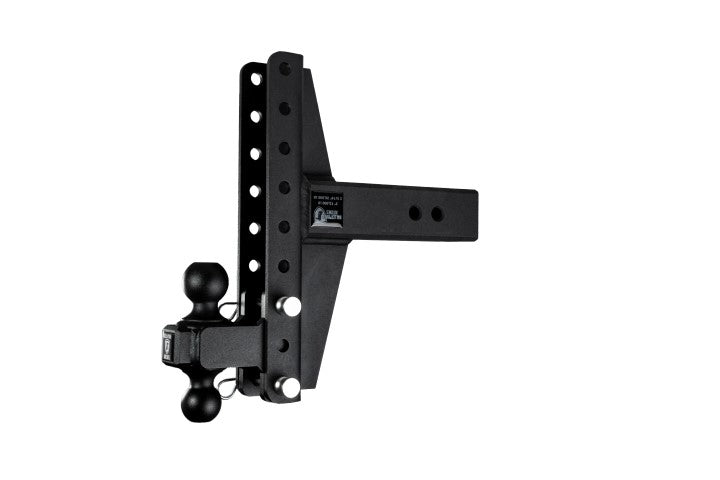

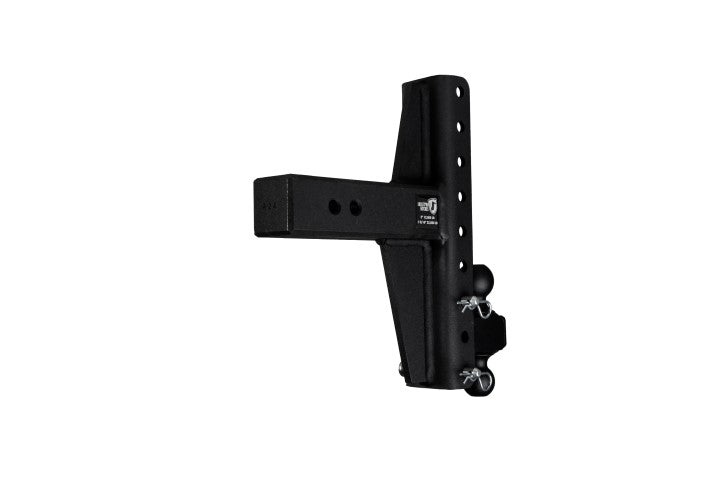

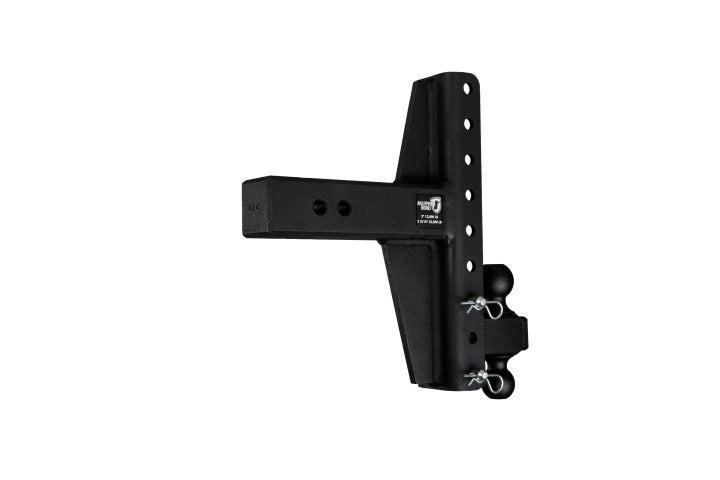

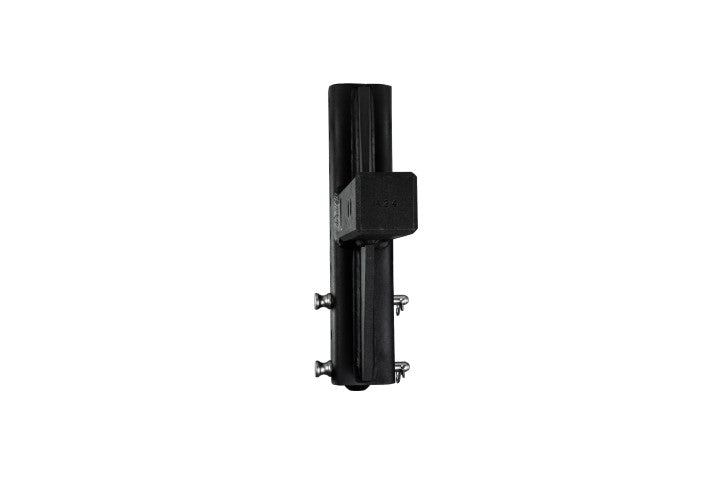

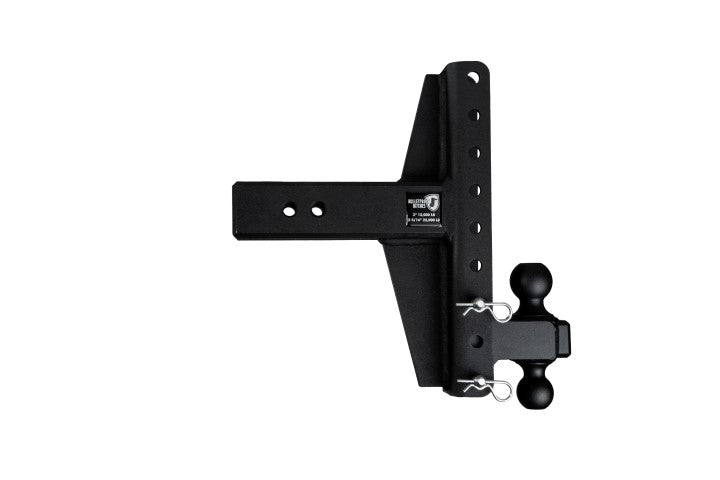

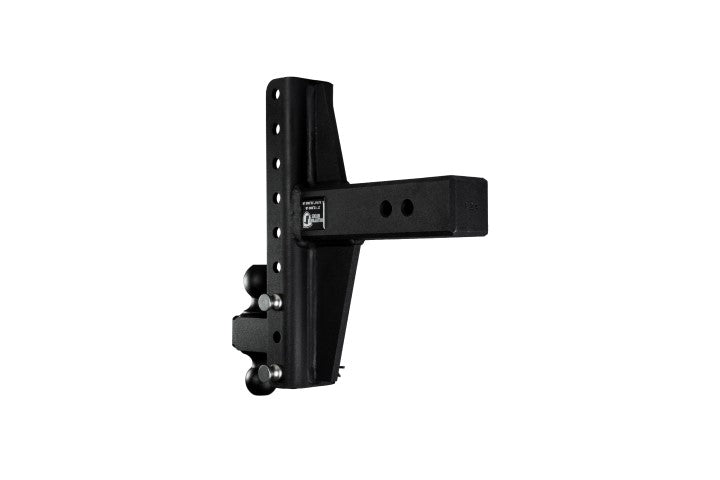

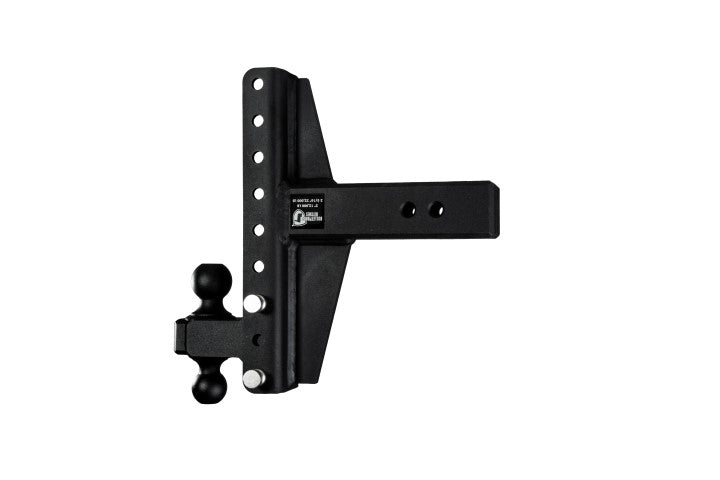

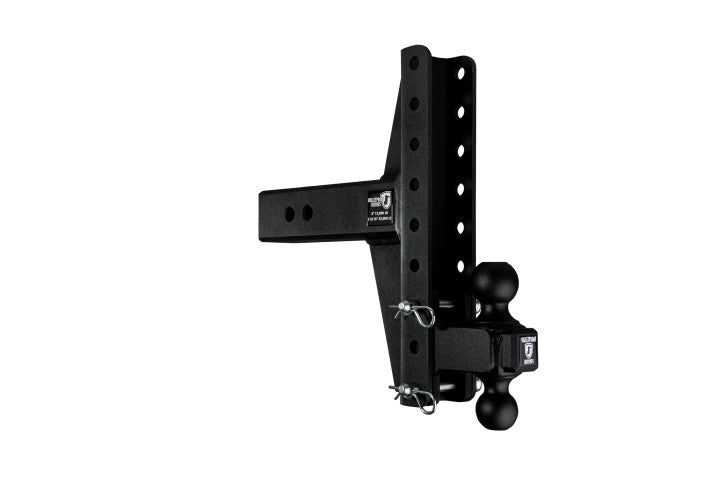

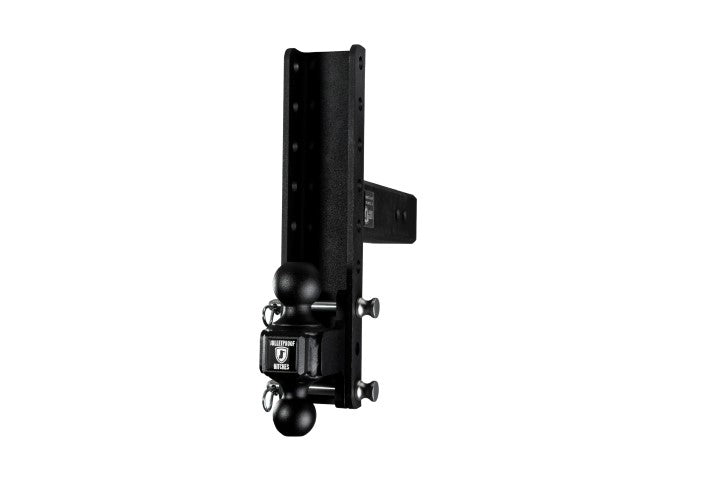

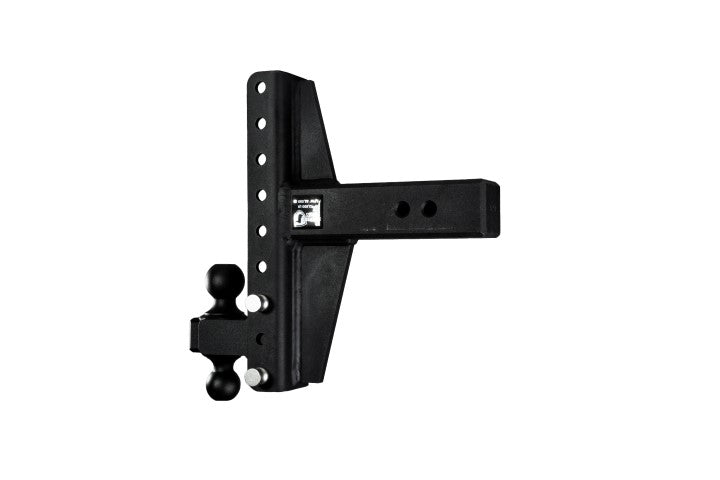

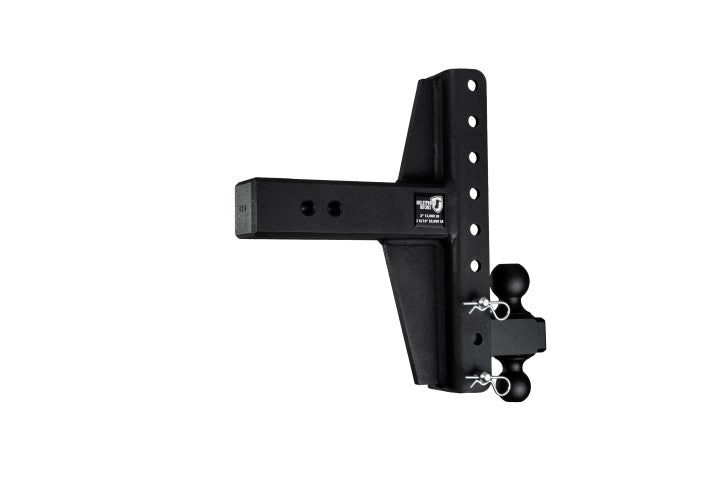

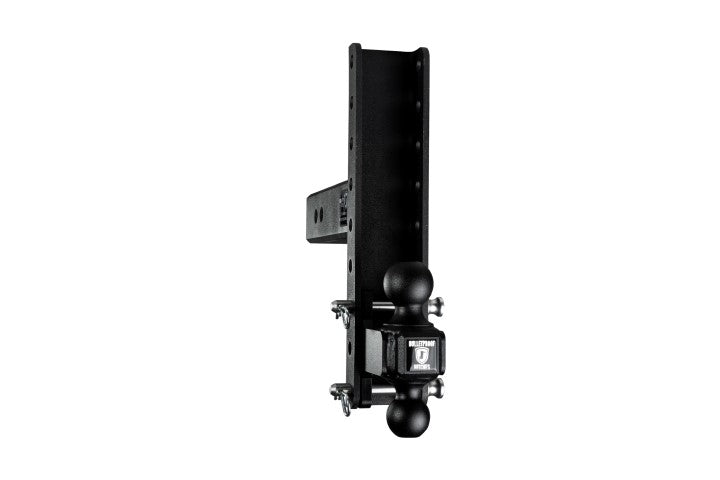

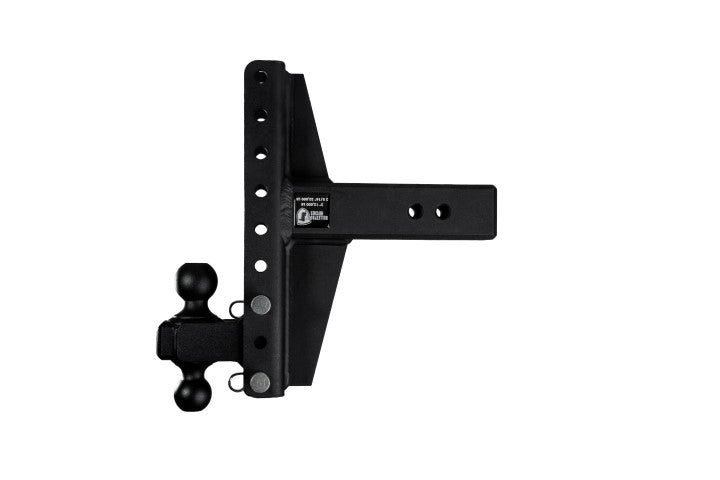

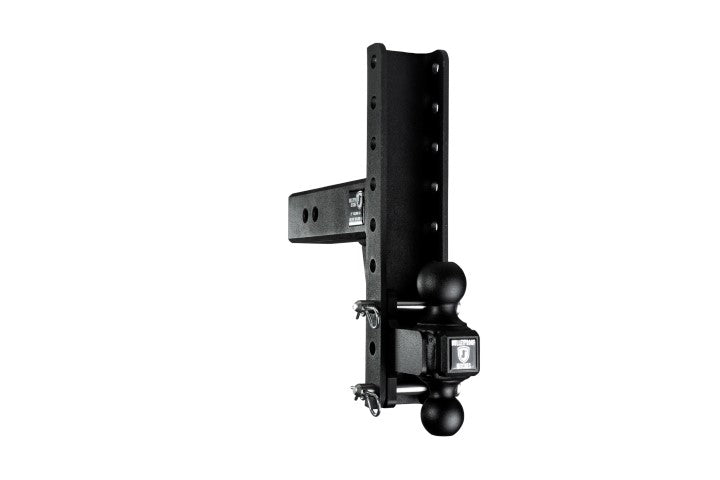

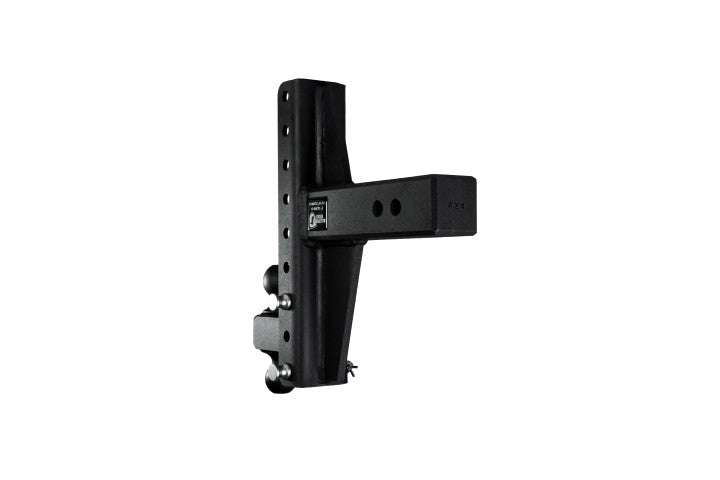

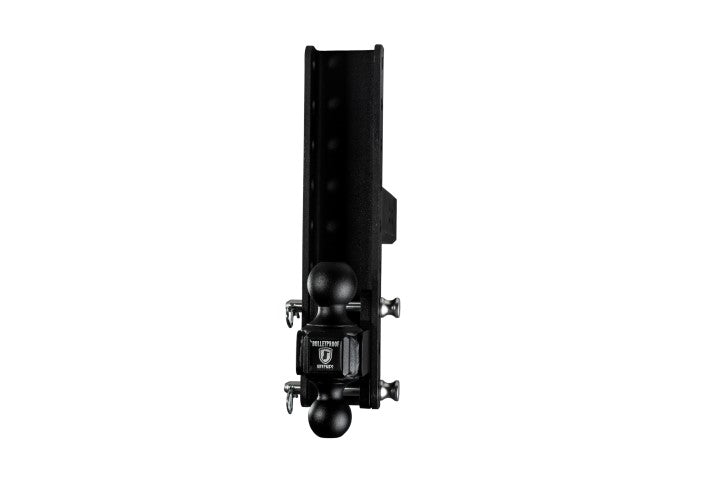

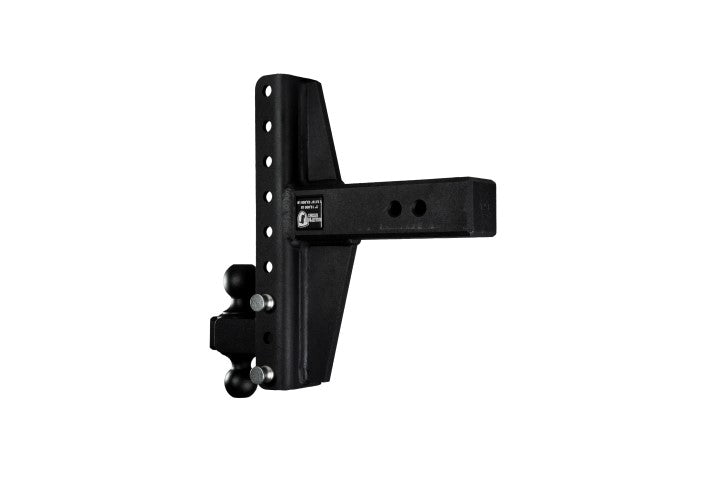

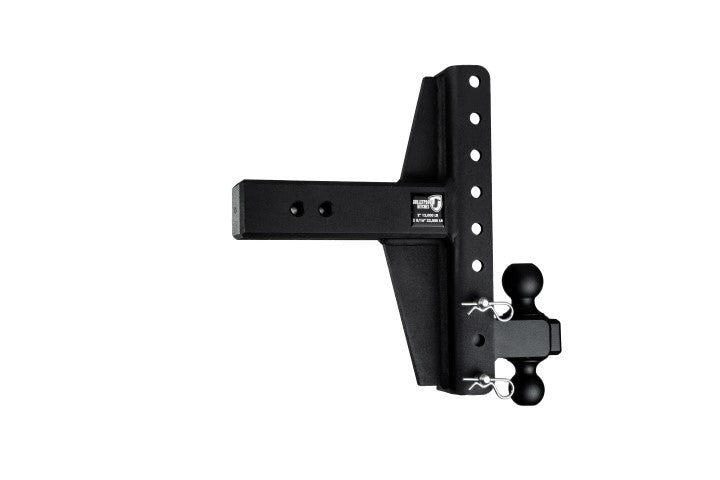

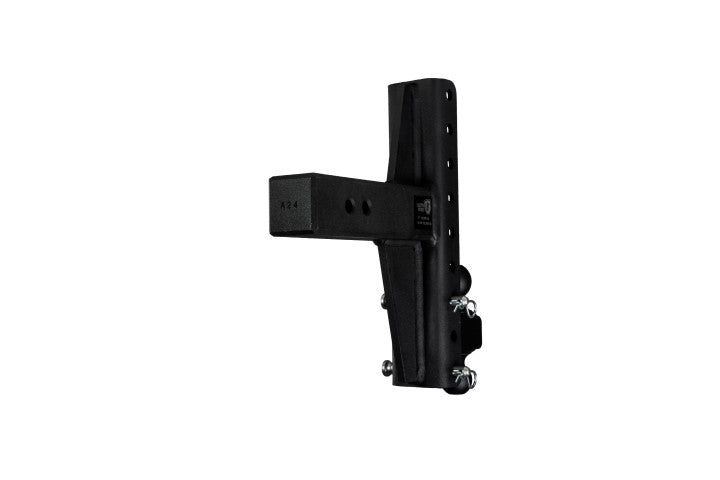

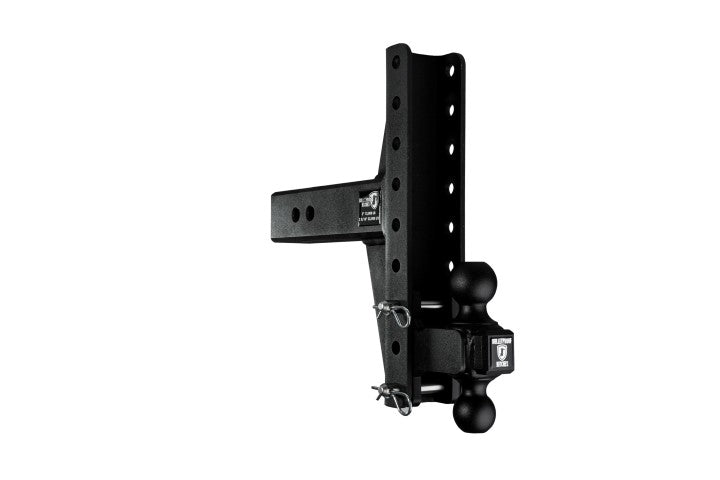

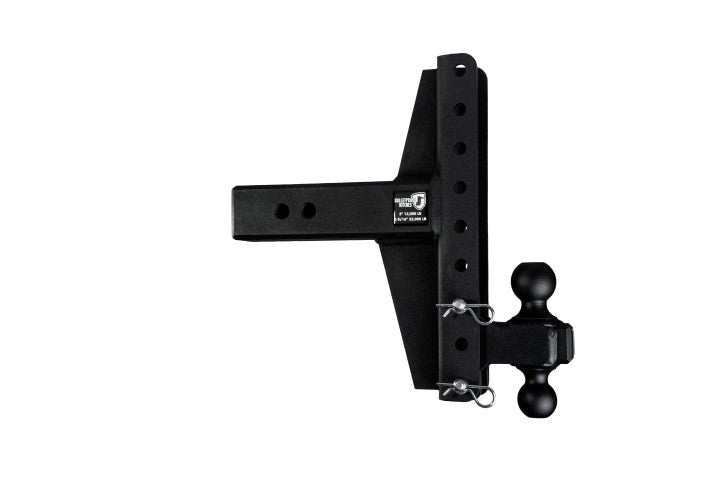

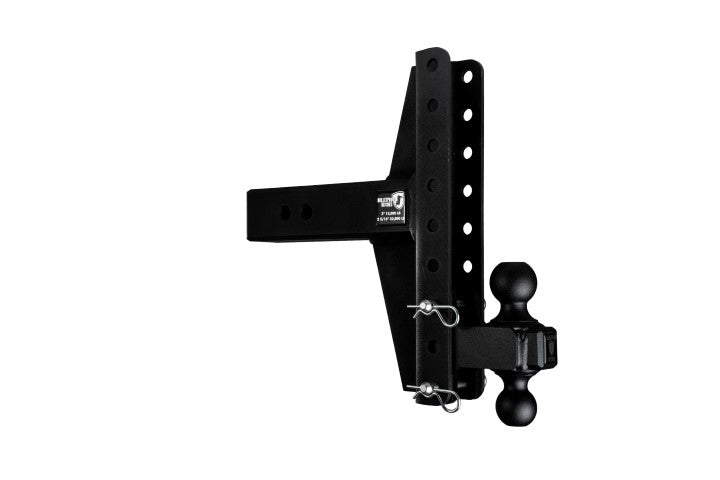

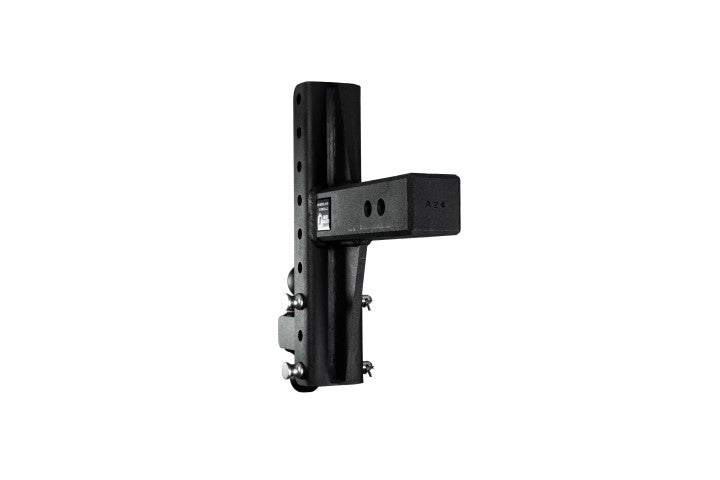

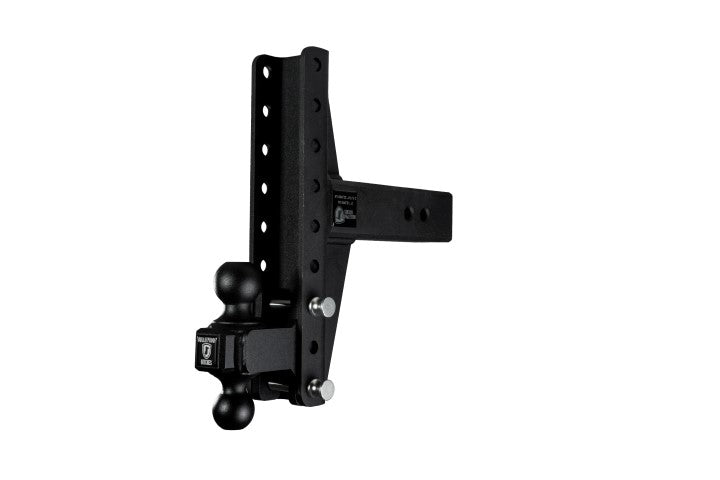

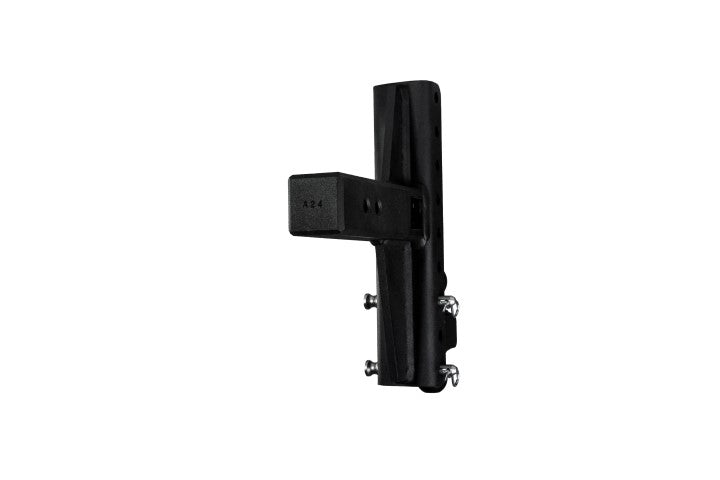

3.0" Heavy Duty 4" & 6" Offset Hitch
Our 3.0" Heavy Duty 4" & 6" Offset Hitch is unlike any of our competitors' products. We worked hard to create 1 amazing Hitch that does the work of 10.
Our hitches are extensively tested and exceed SAE-J684 testing requirements. They are built with such high standards that we have never had a single failure and you can see why from the features listed below:
Class 5 Hitch with 22,000 lb Max Towing Capacity & 3,000 lb Tongue Weight Capacity
7 Ride Heights that are Easily Adjustable.
The 3.0" Heavy Duty 4" & 6" Drop/Rise Offset Hitch Weighs 68 Pounds.
*PATENT PENDING

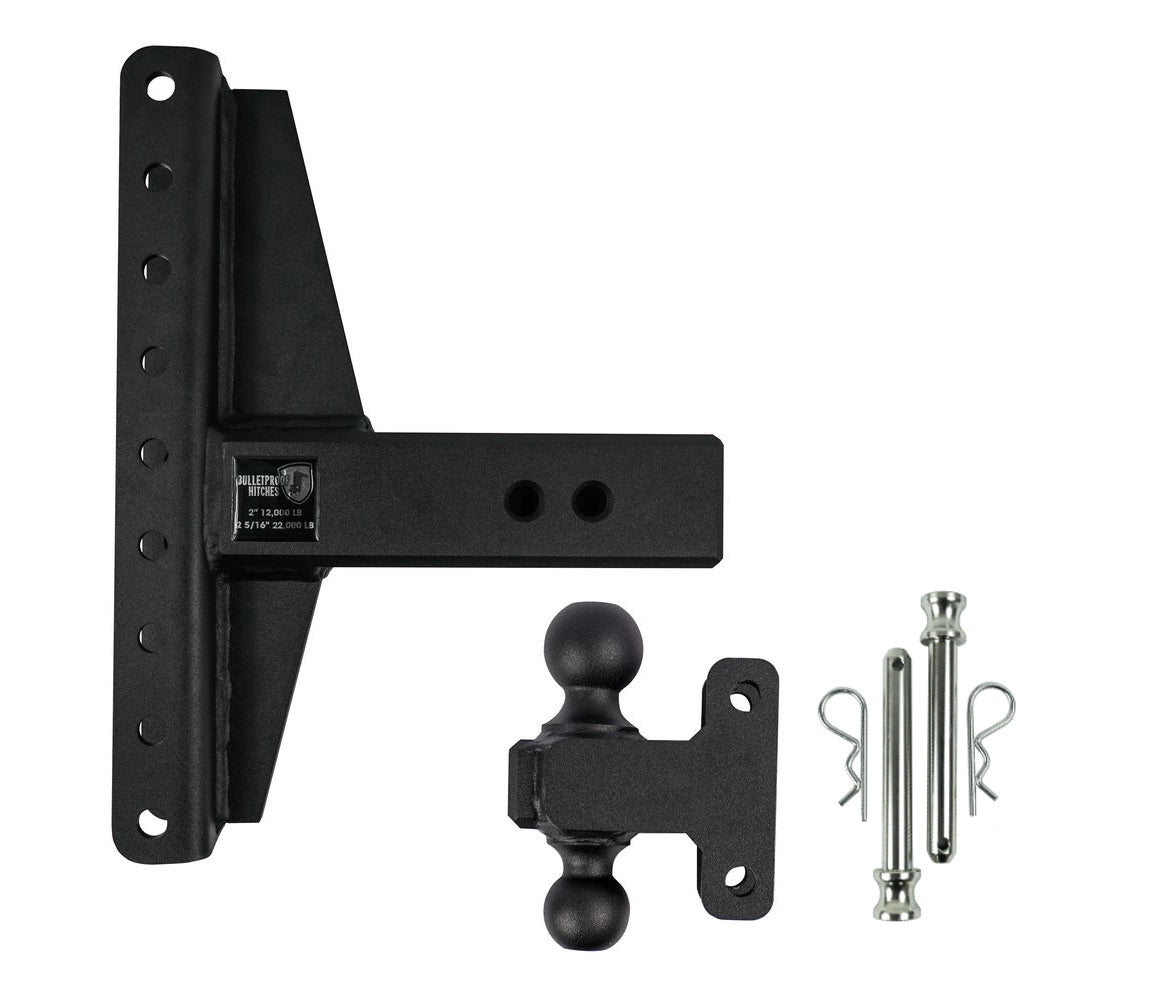

- 3.0" Solid Steel Shank
- 2 × 5/8" Corrosion Resistant Pins
- 2 × R-Clips
- 2" & 2-5/16" Ball Mount
The Heavy Duty and Extreme Duty hitch shanks are solid steel all the way through and have chamfered edges so that they can easily slide into & out of your hitch receiver. The solid steel shank also comes with two pin holes on the shank for more adjustment options.
The textured powder-coated finish creates a durable surface to help protect your hitch.

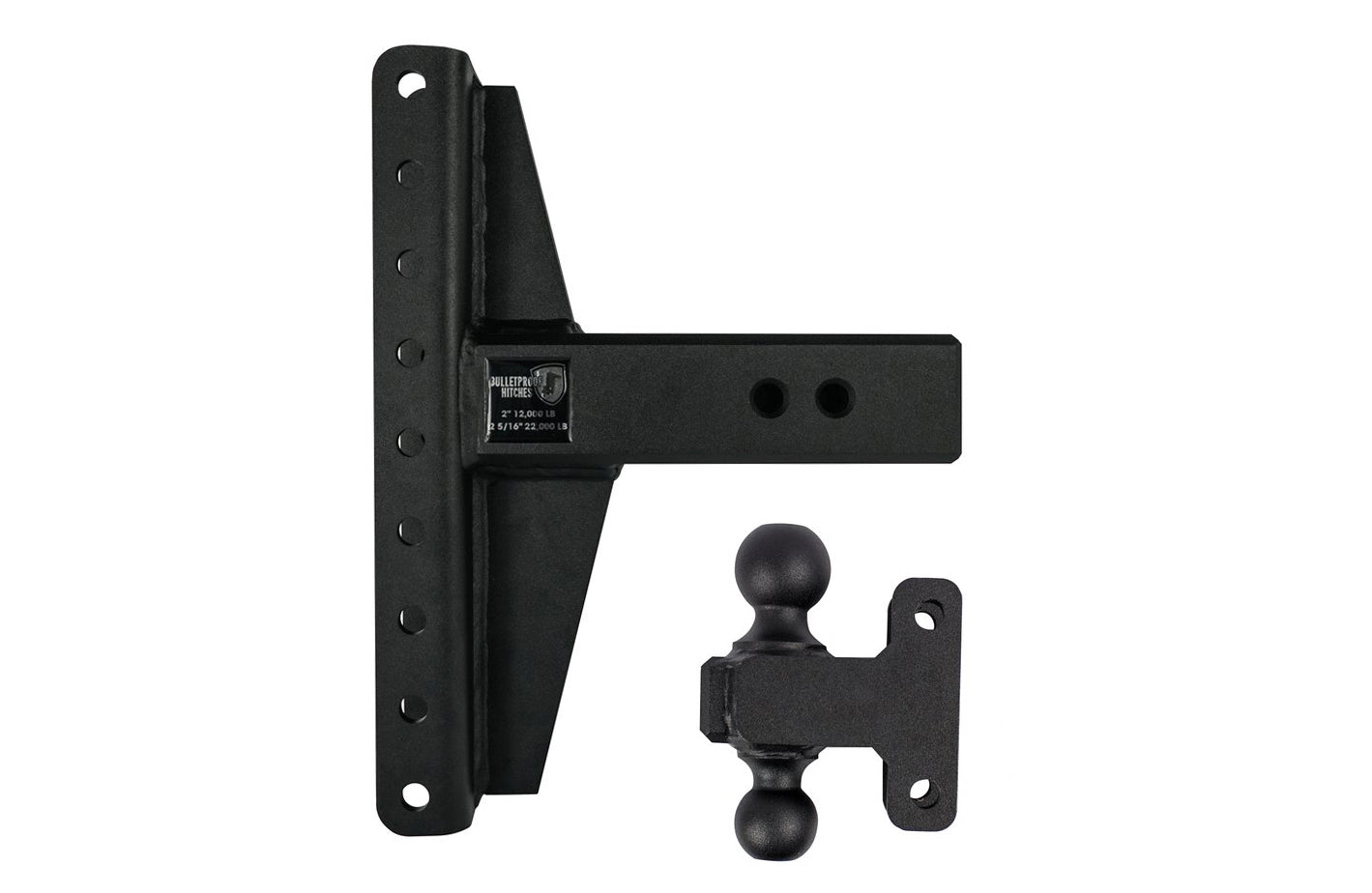

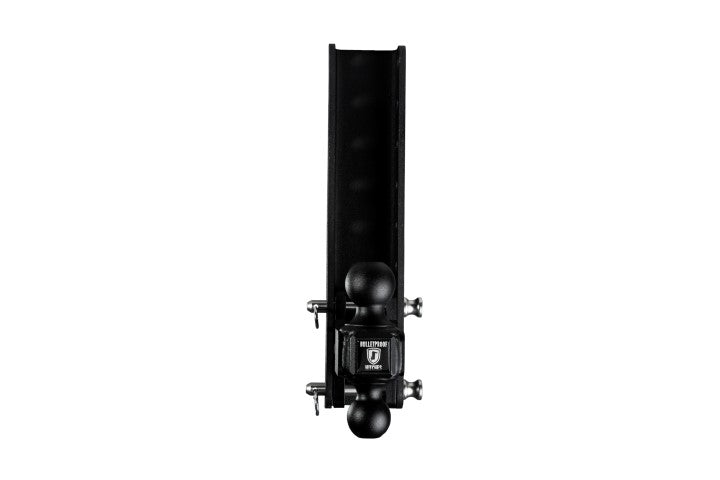

Each adjustable mount includes a 2-ball platform, which fits in the adjustable channel. The 2 hitch balls are welded together onto the solid steel platform for maximum strength and stability.
Note: We can include any of the dual ball size combinations listed below with your hitch order.
Select the sizes needed for your dual ball from the options below.
Available Dual Ball Combinations Include:
2" & 2-5/16" Dual Ball — No Additional Cost (Most Common Size)
Heavy Duty Sway Control Ball Mount — $74.95 Upgrade
2" & 2-5/16" Dual Ball AND 1-7/8" Single Ball Mount — $119.95 Upgrade
Heavy Duty Dual Ball Weight Ratings
1-7/8" Ball: 8,000 lb Rating
2" Ball: 12,000 lb Rating
2-5/16" Ball: 22,000 lb Rating
All BulletProof Hitches® feature a durable corrosion-resistant powder coat. This process starts with an aggressive sandblast to remove all impurities and create a clean surface for the powder coat. After the sandblast process, the hitch moves through a 5-stage pretreatment wash to remove any oil or residue. The metal itself is then sealed to eliminate the possibility of corrosion. The final step is an application of our signature black textured powder coat, which is applied by a Fanuc robot to ensure consistent thickness across the hitch.
The components of the BulletProof Hitch® are machined on our state-of-the-art Haas CNC machines. These CNC machines use Renishaw probes, allowing us to manufacture all of our parts to an extremely tight tolerance. This primarily ensures that each hitch and ball combination fit together without slop or excess movement when attached to your vehicle.
All of our hitches can be used in the drop or rise position and maintain the same weight capacity in either position.
This 3.0" Heavy Duty 4" & 6" Offset Hitch has a max towing capacity of:
22,000 LBS and a tongue weight capacity of 3,000 LBS in both the drop & rise positions.
