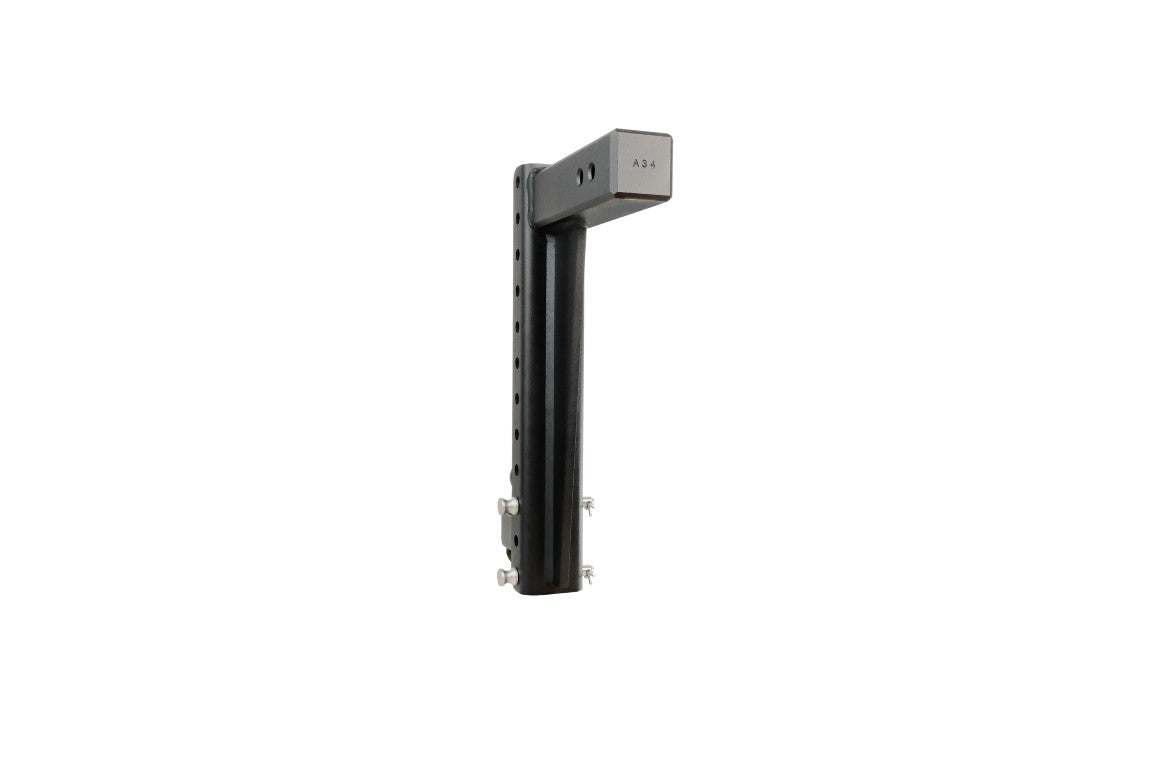

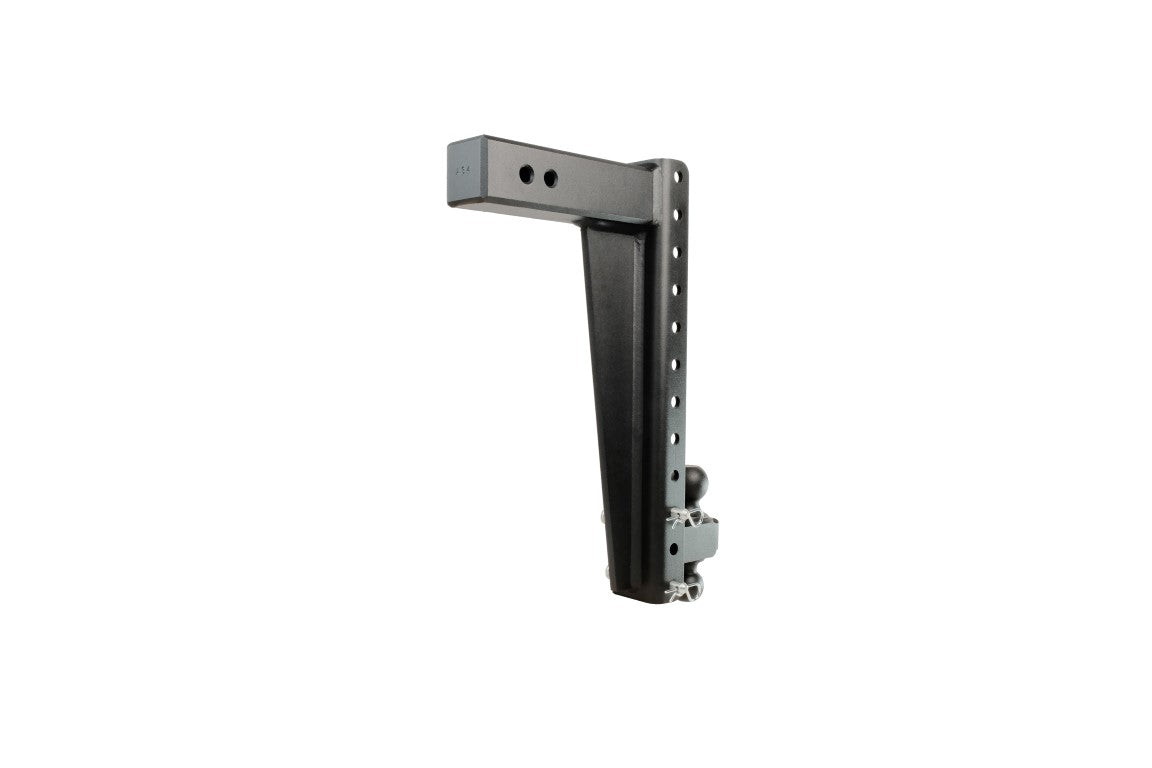

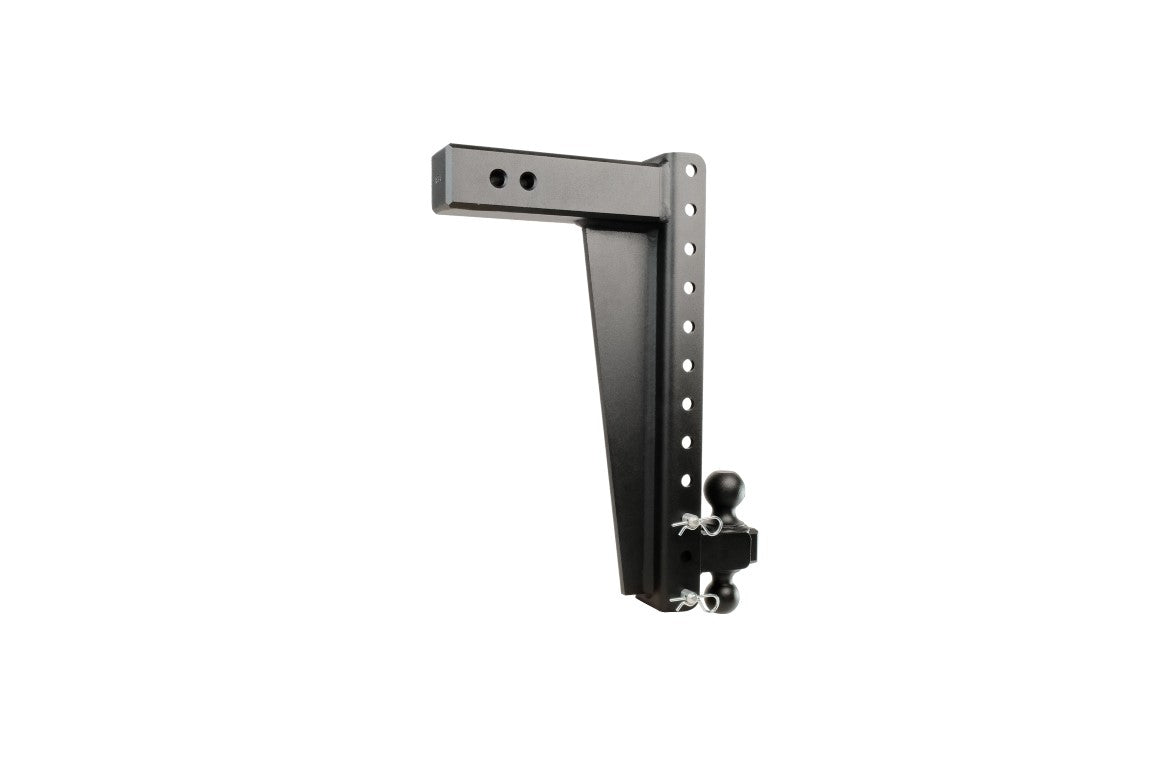

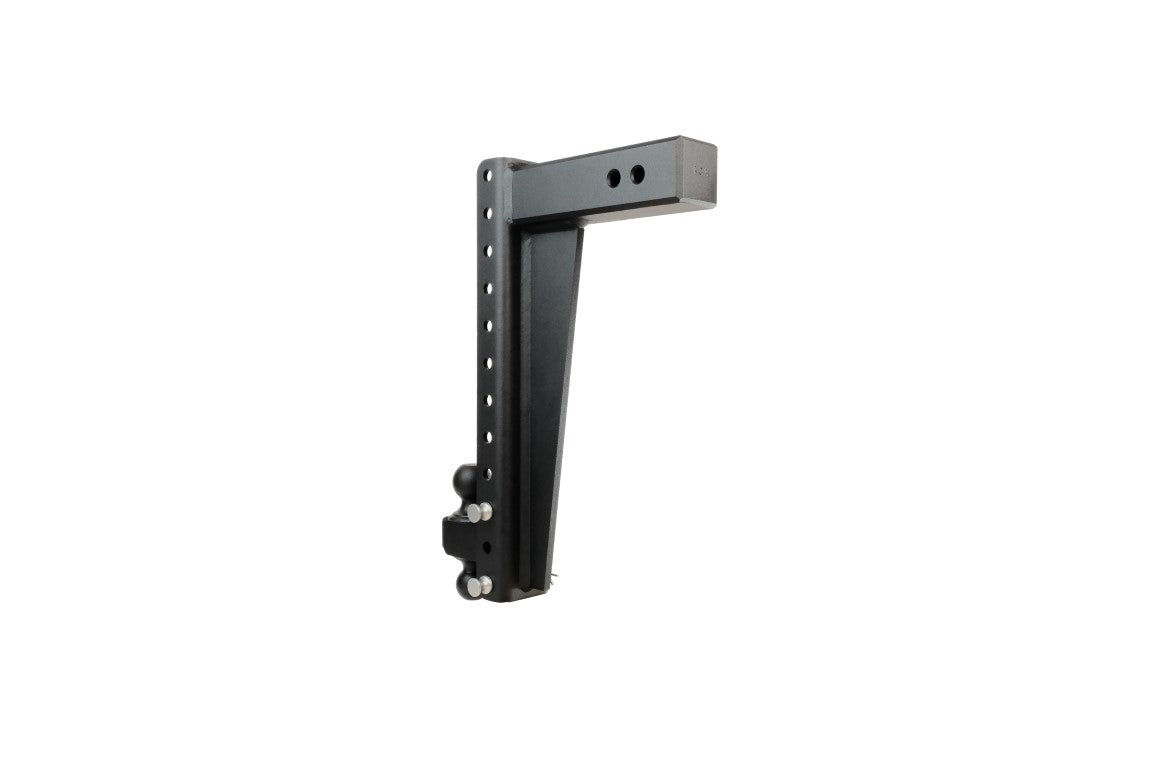

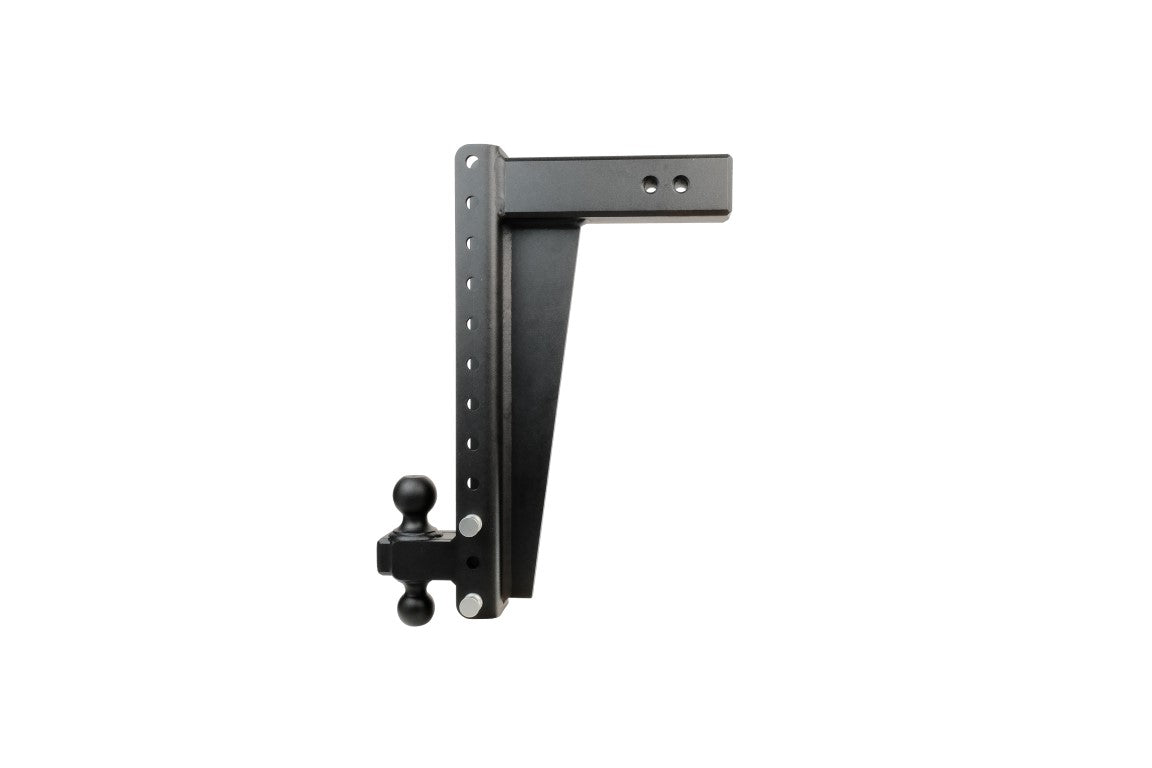

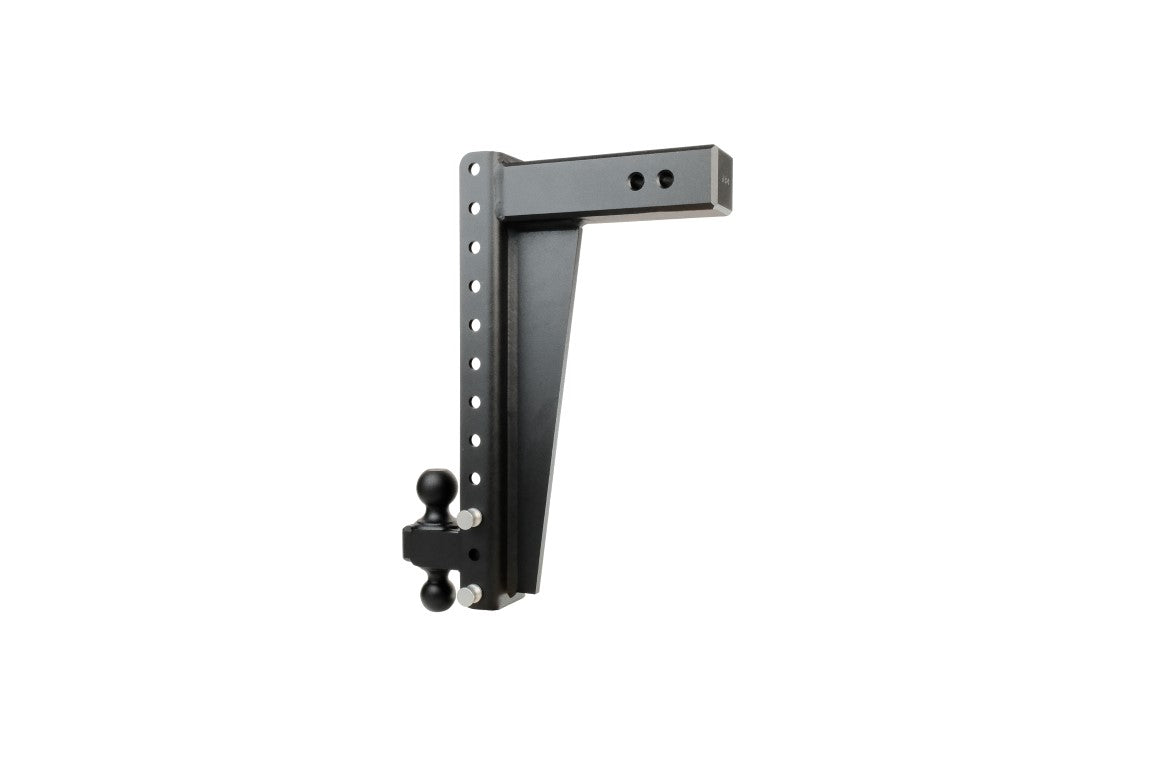

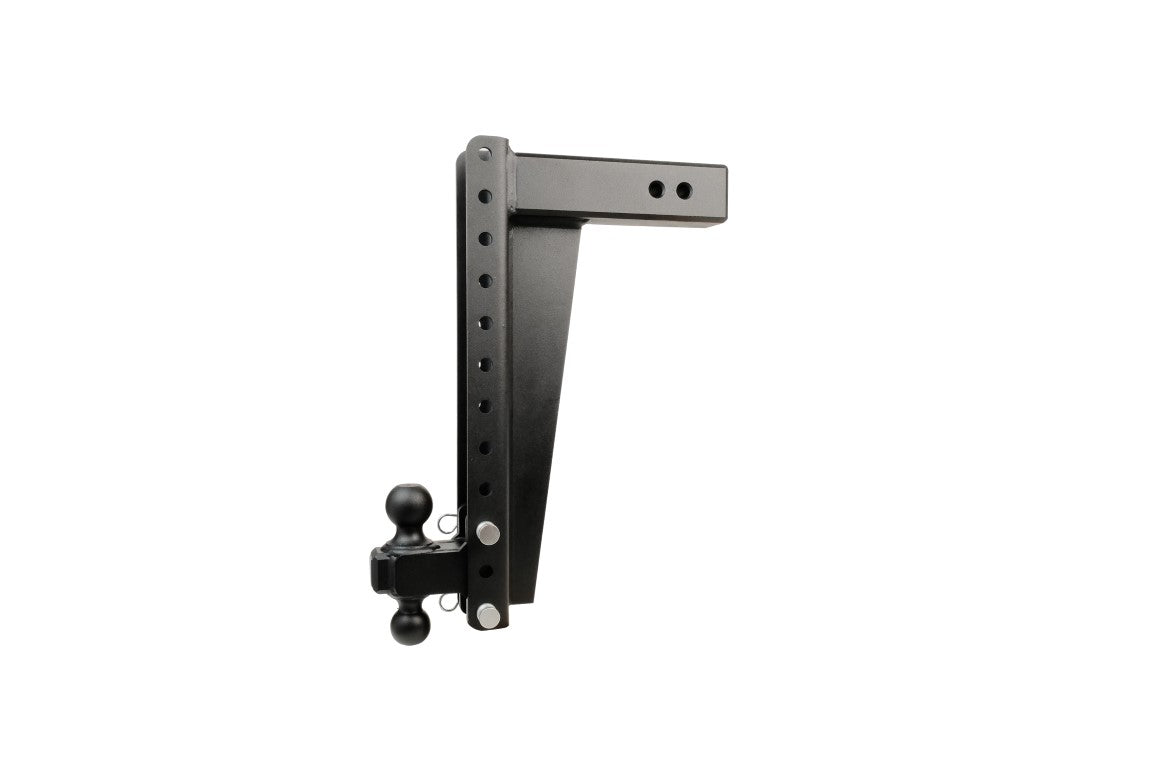

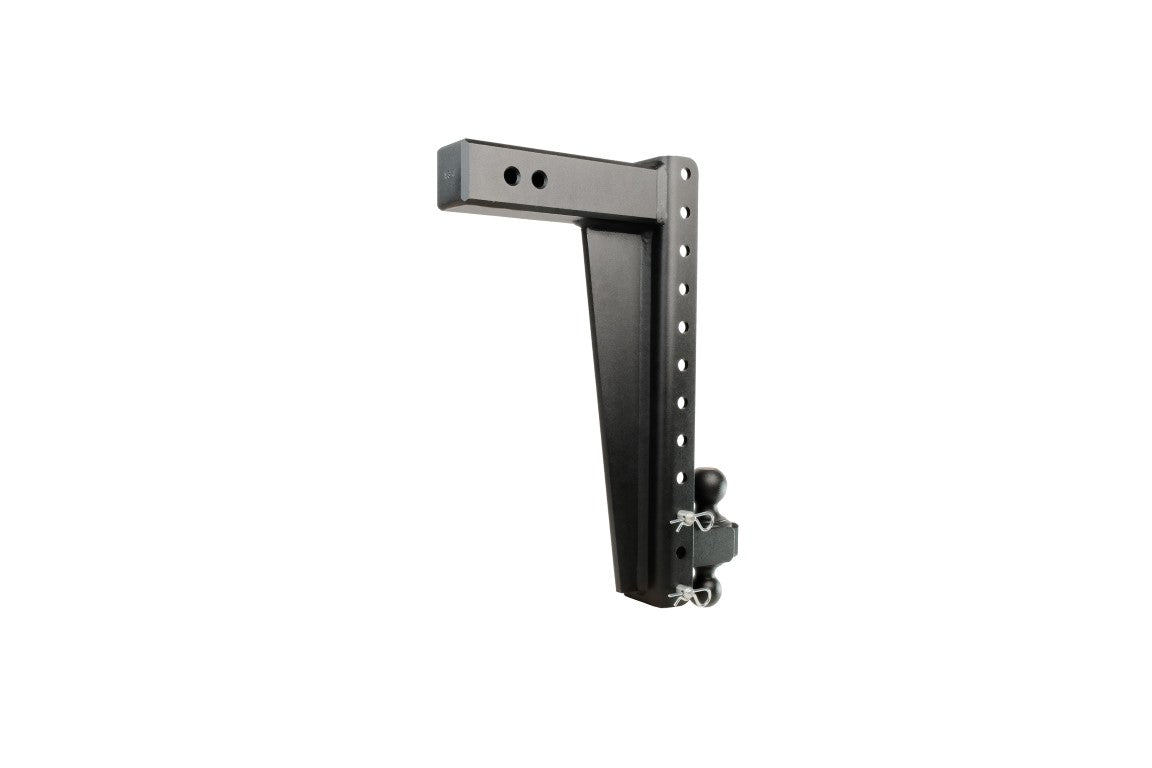

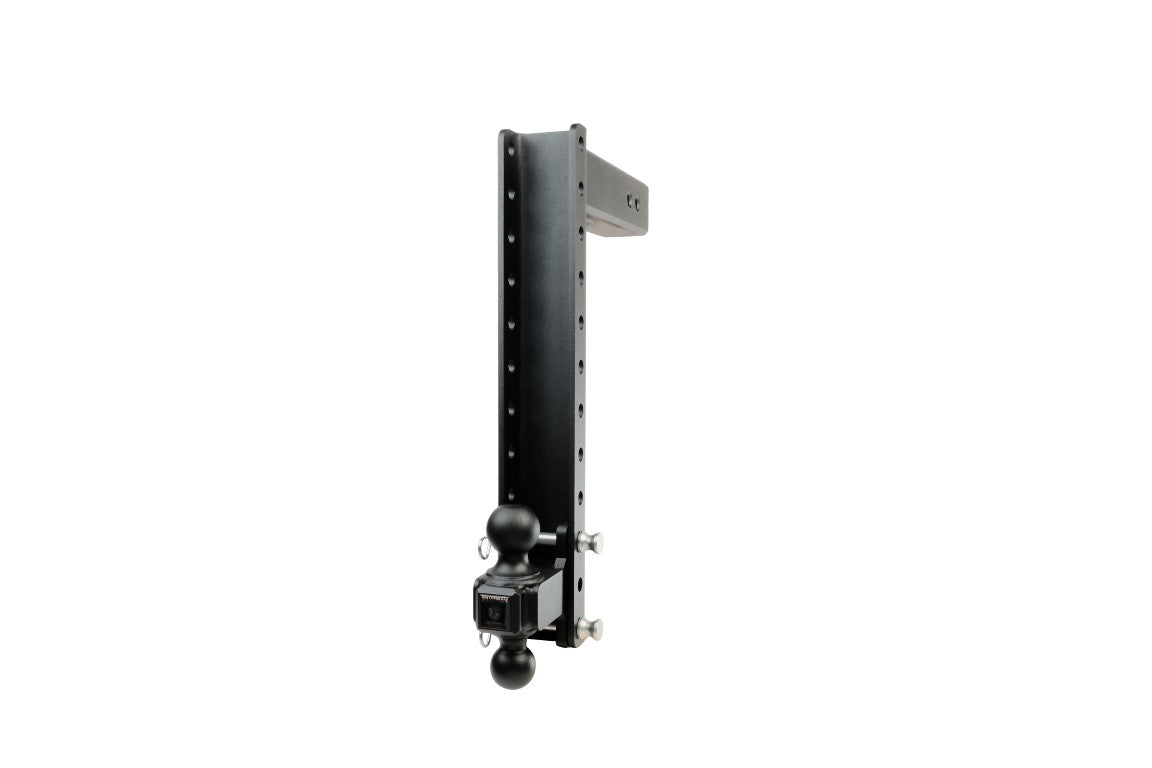

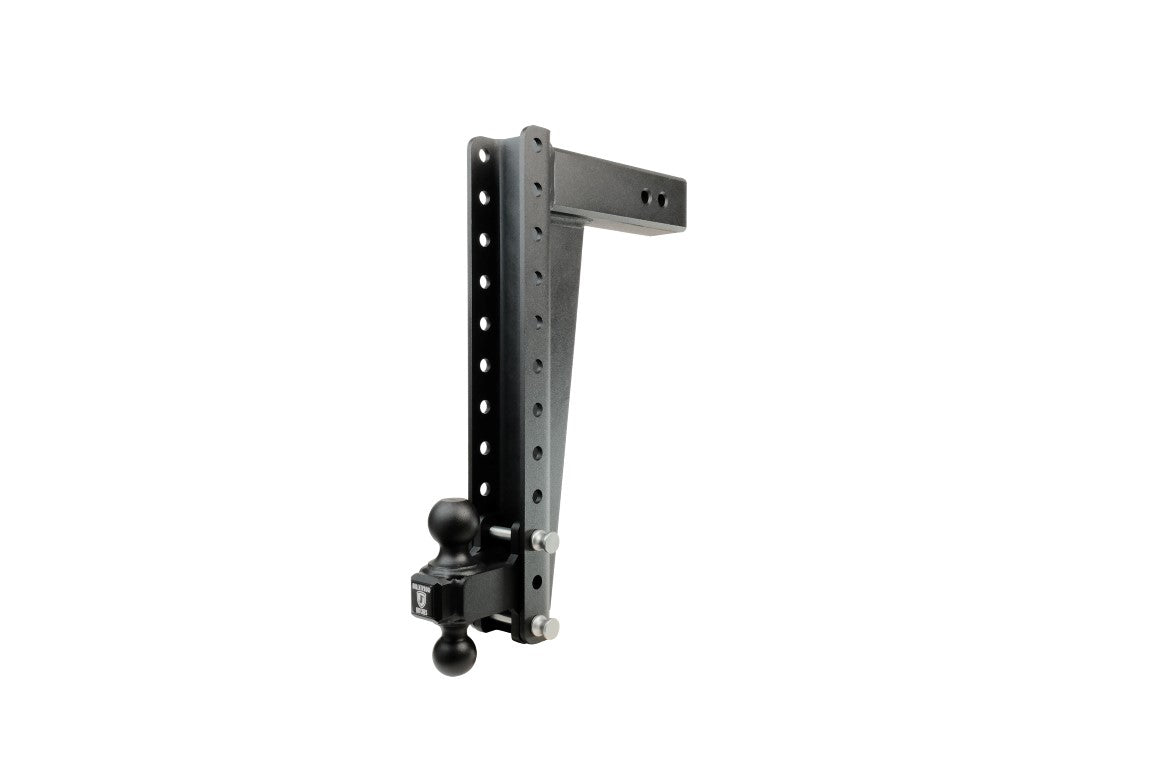

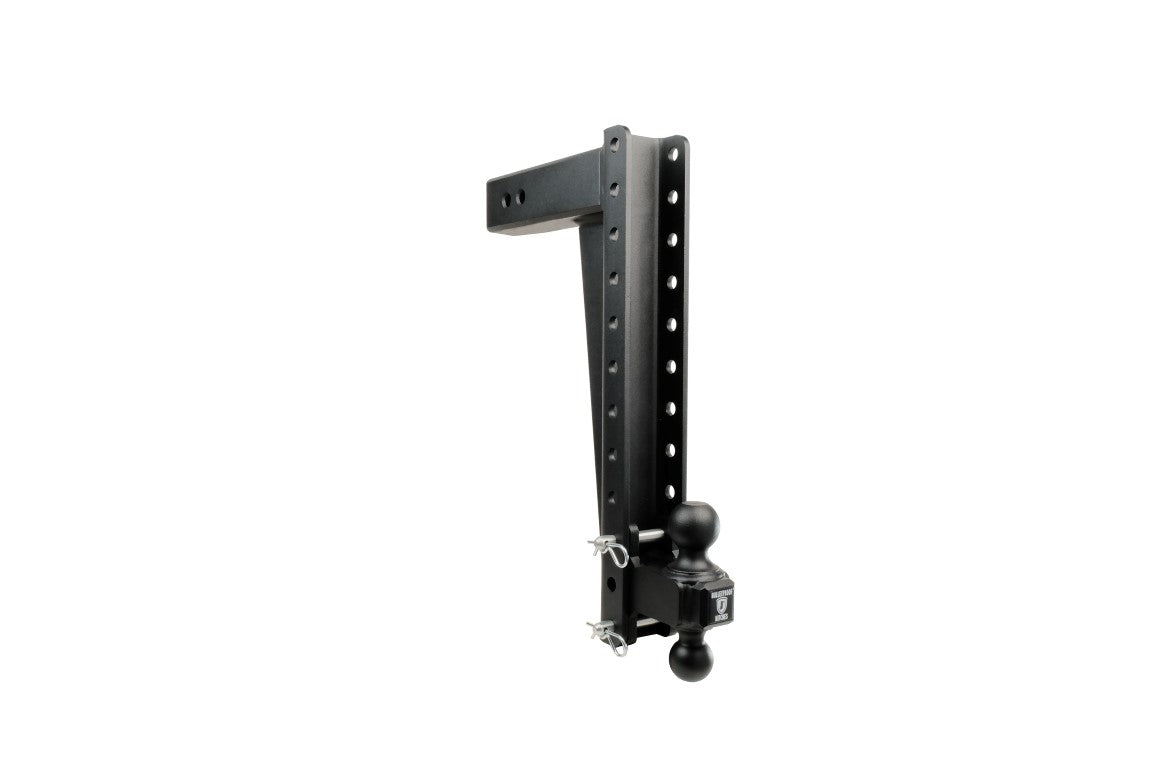

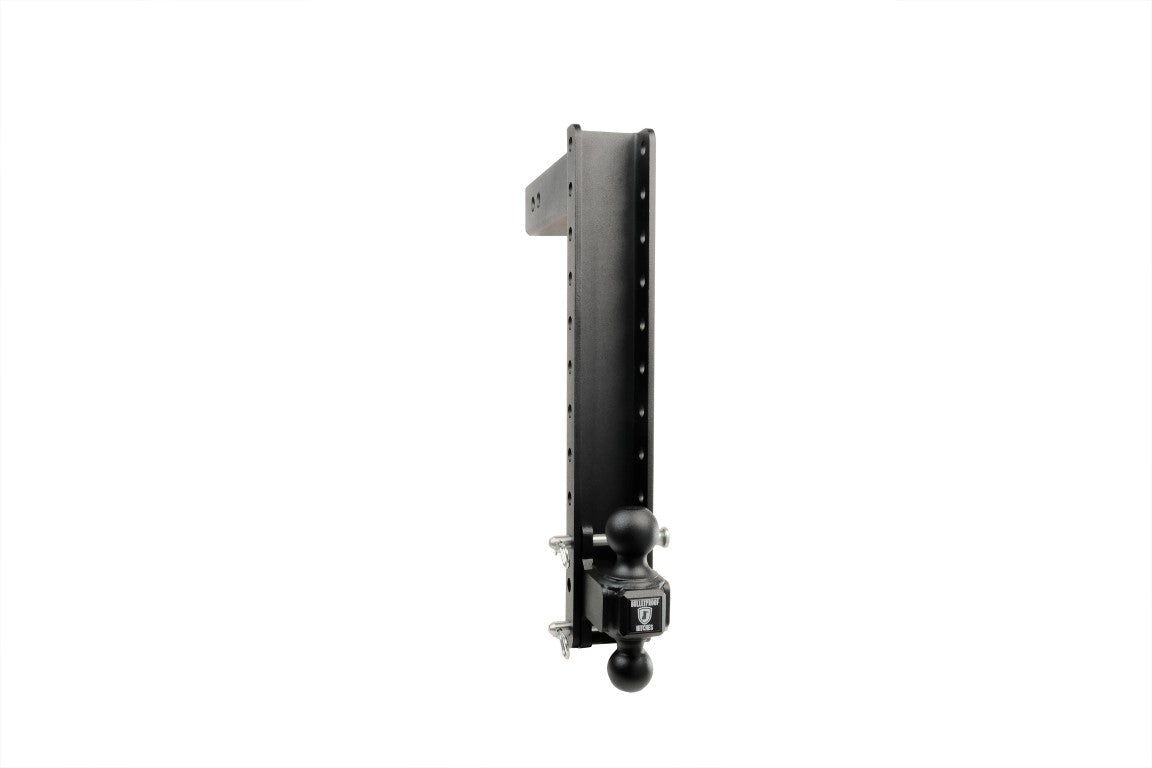

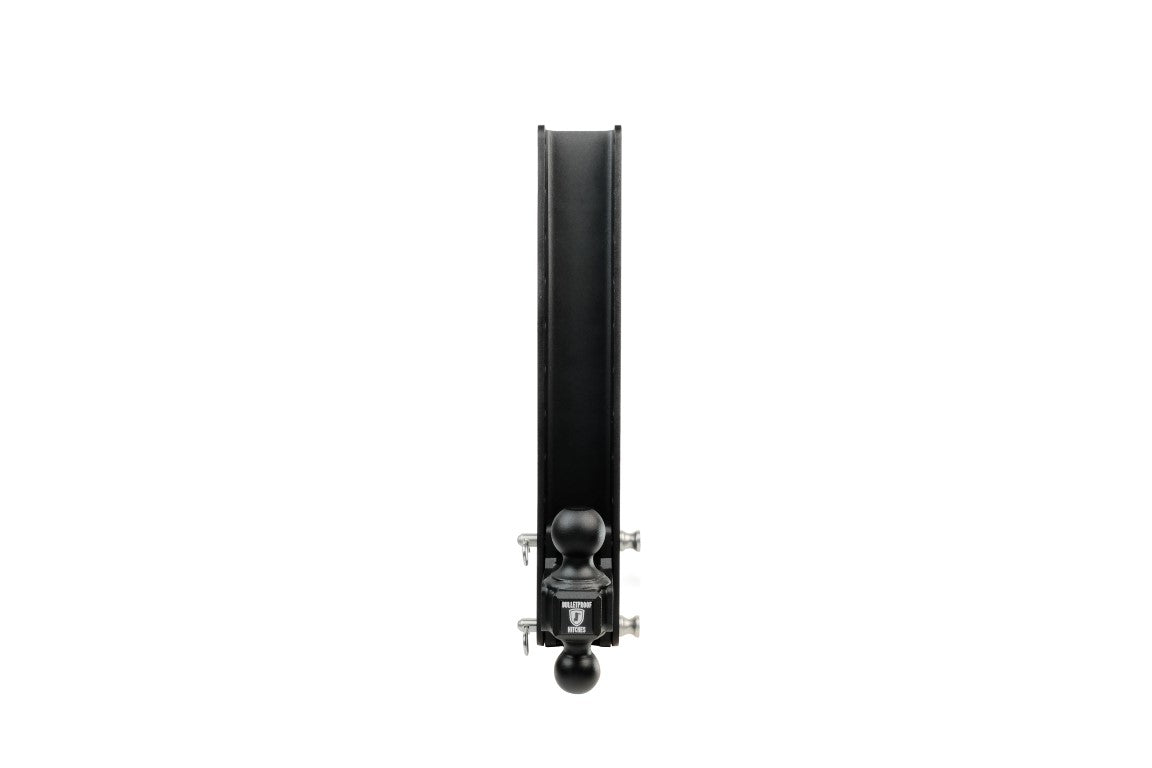

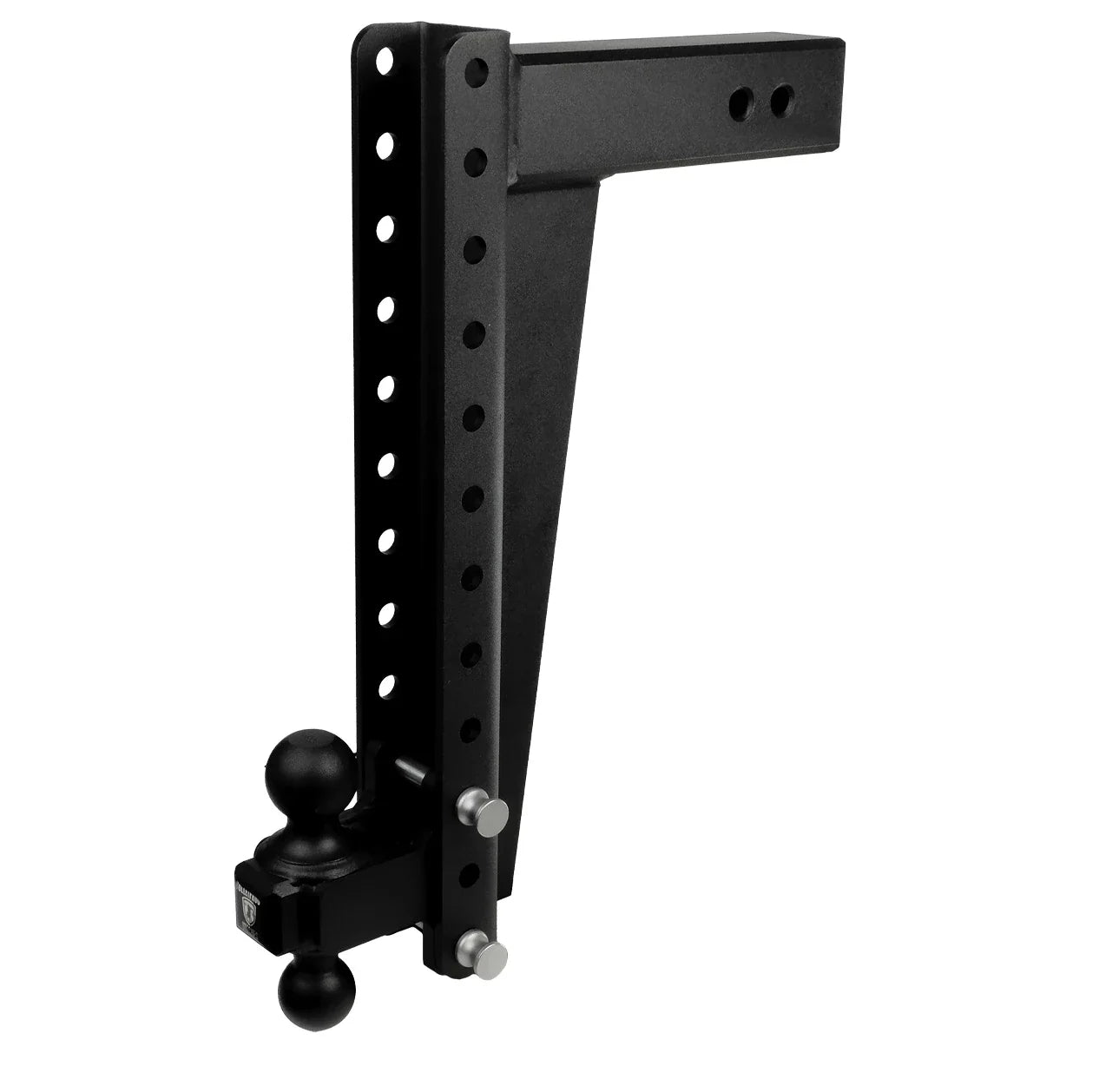

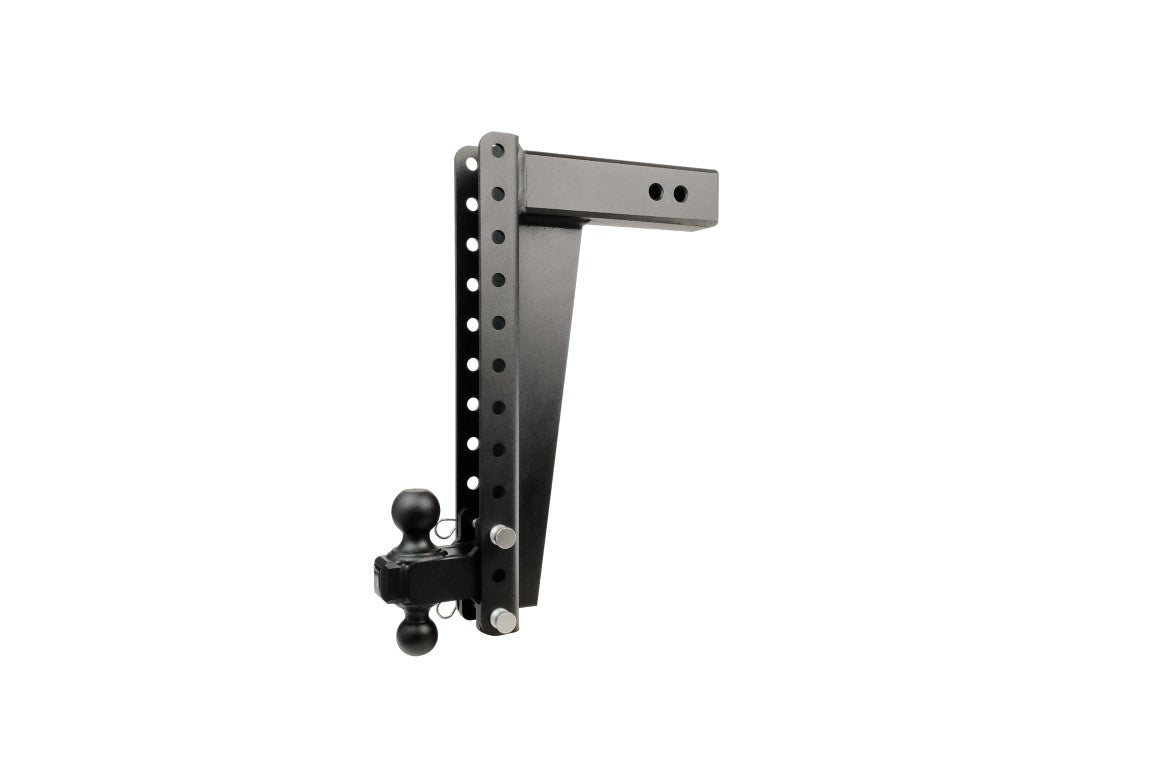

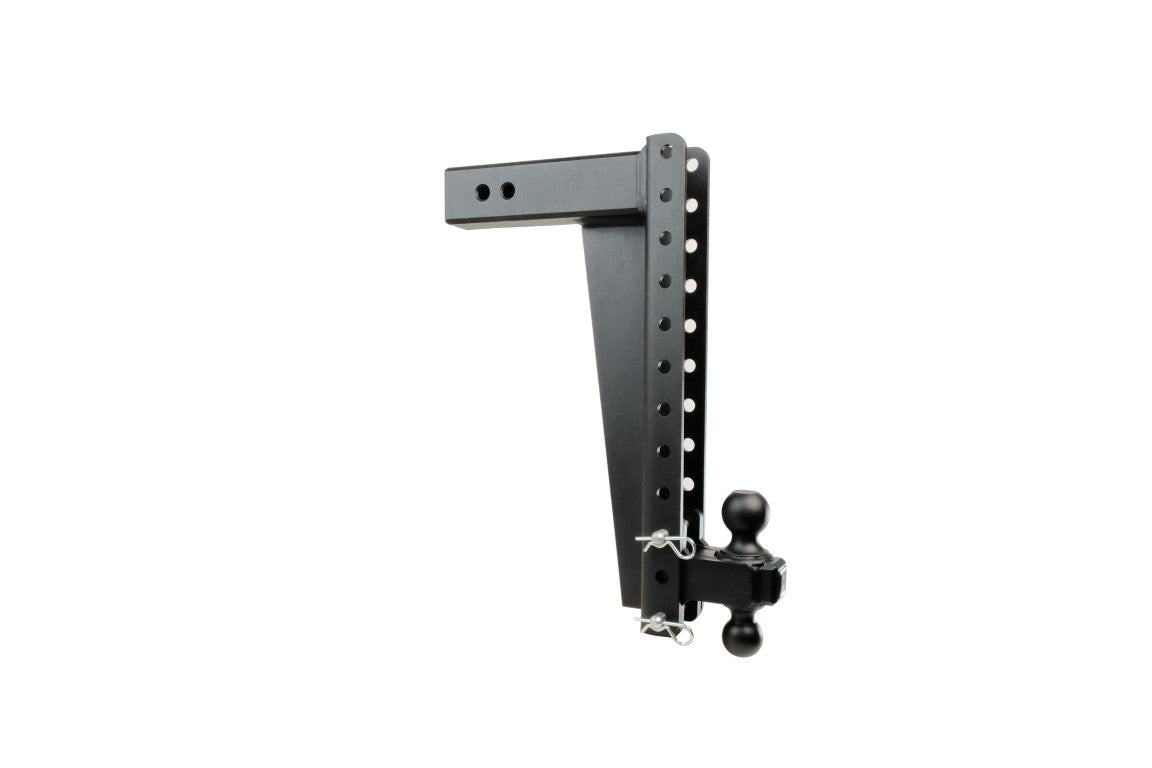

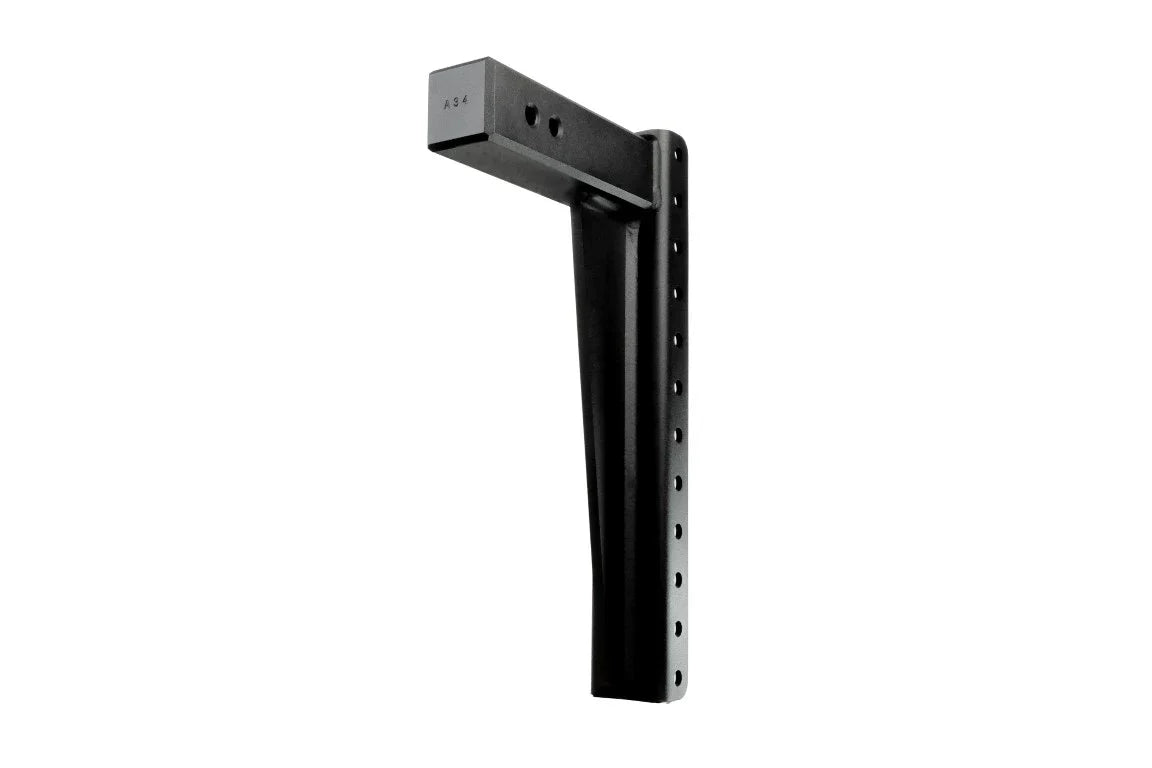

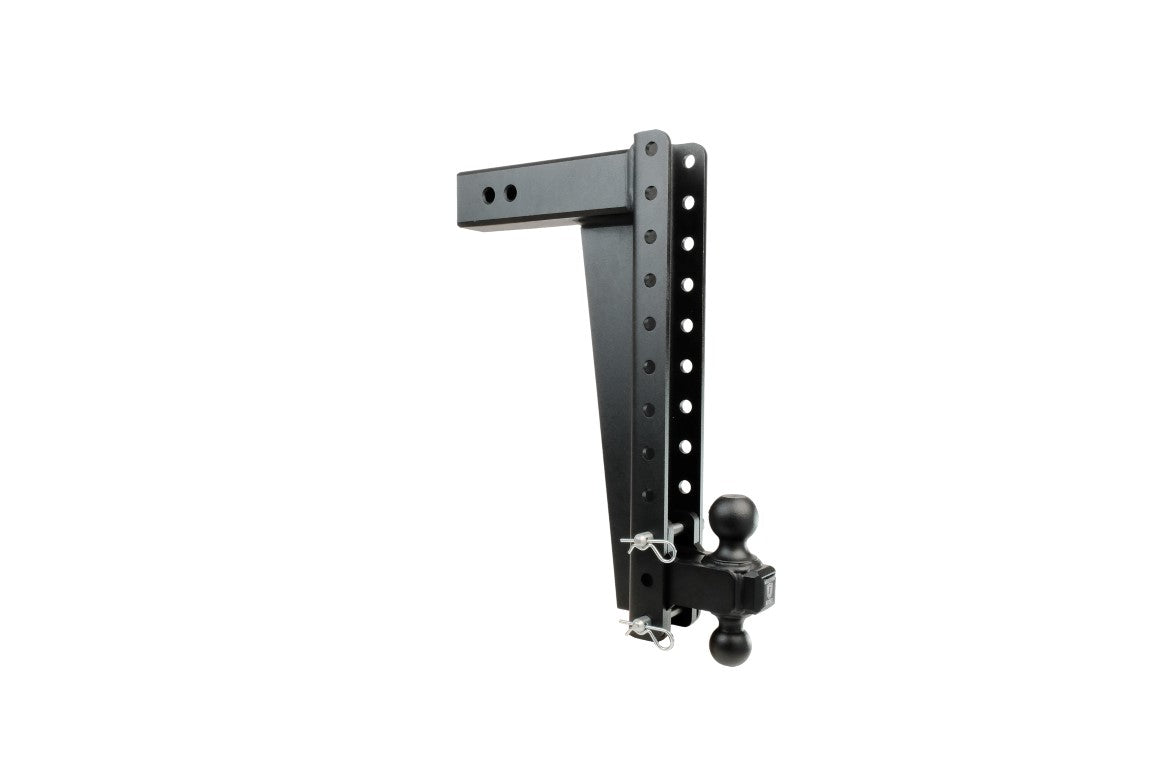

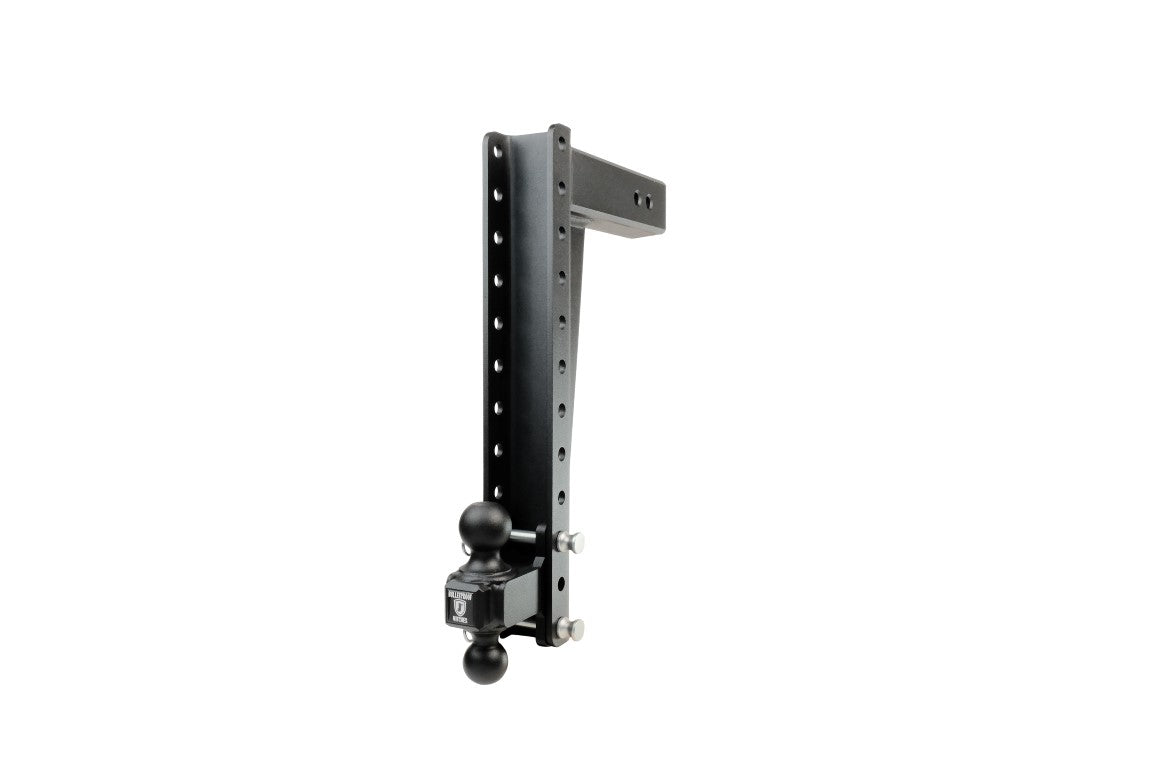

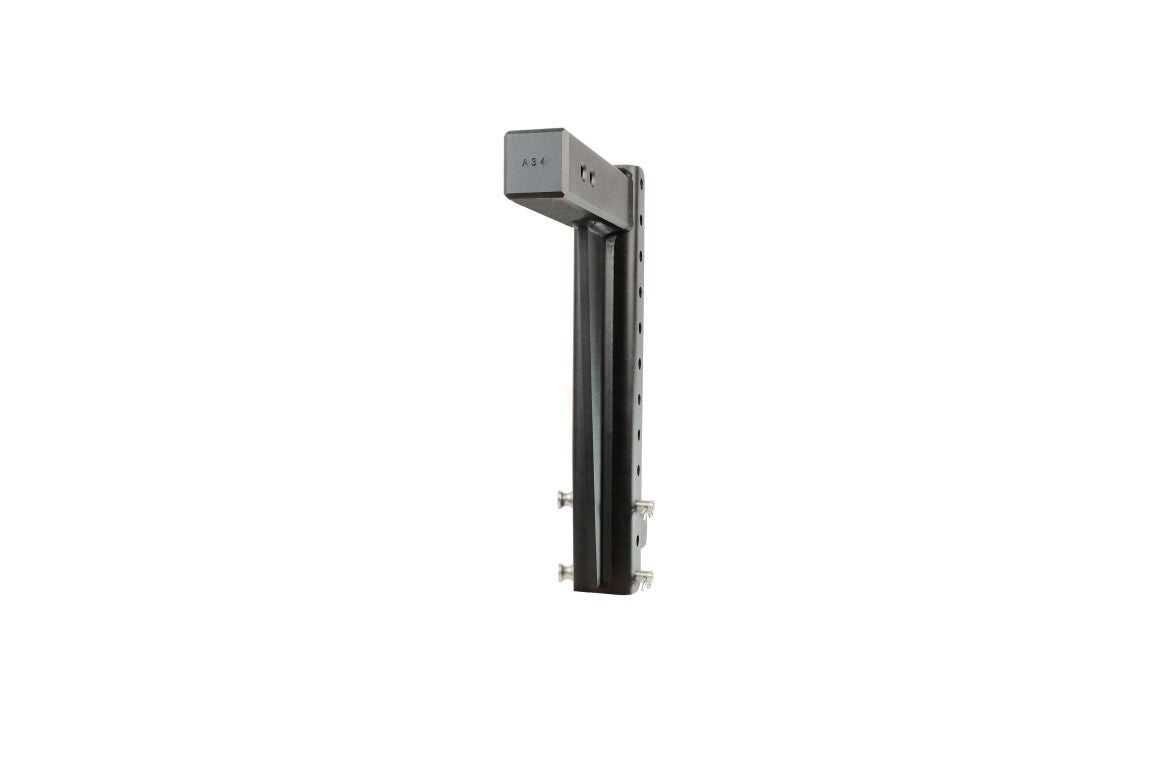

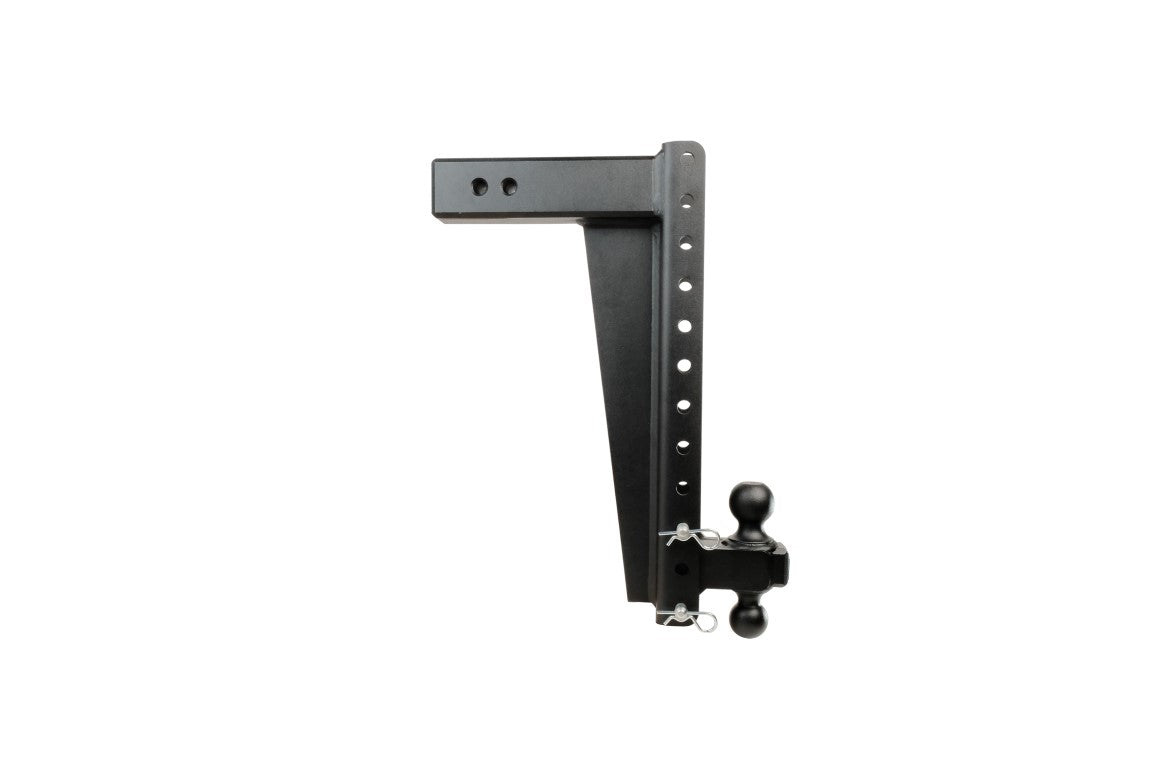

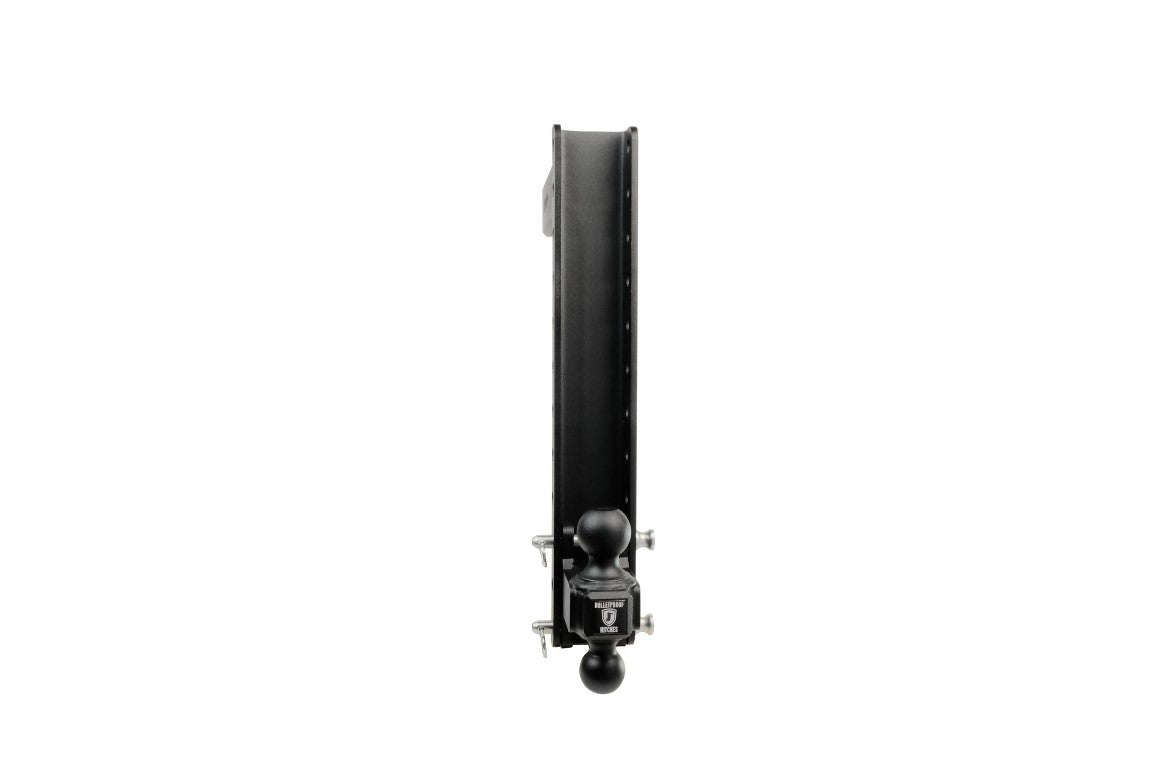

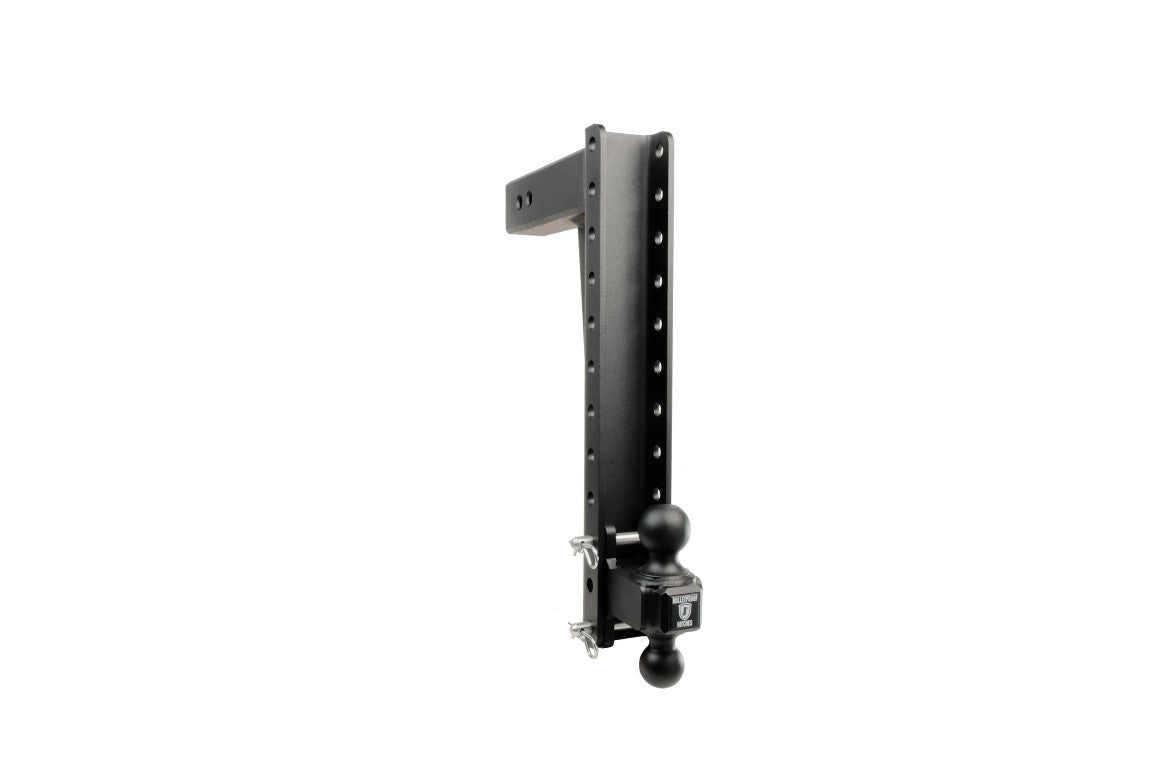

3.0" Heavy Duty 18" Drop/Rise Hitch

3.0" Heavy Duty 18" Drop/Rise Hitch

3.0" Heavy Duty 18" Drop/Rise Hitch Media

3.0" Heavy Duty 18" Drop/Rise Hitch

SKU: HD3018

Product Description

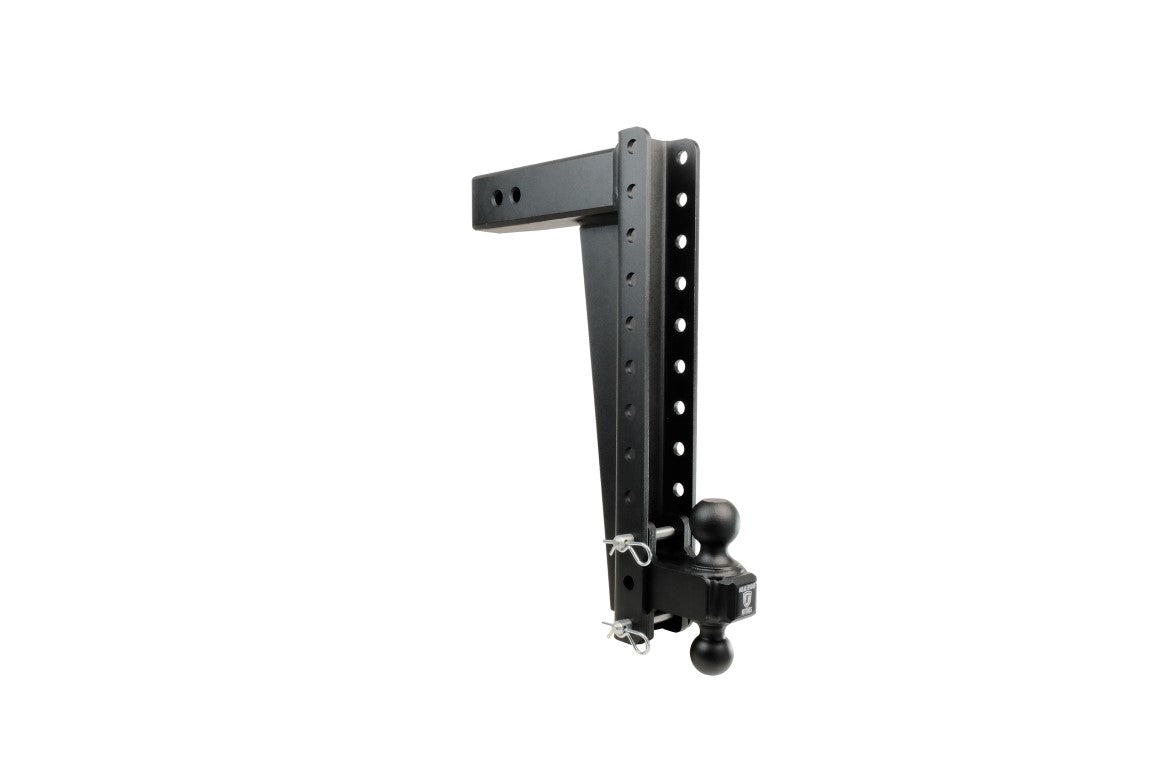

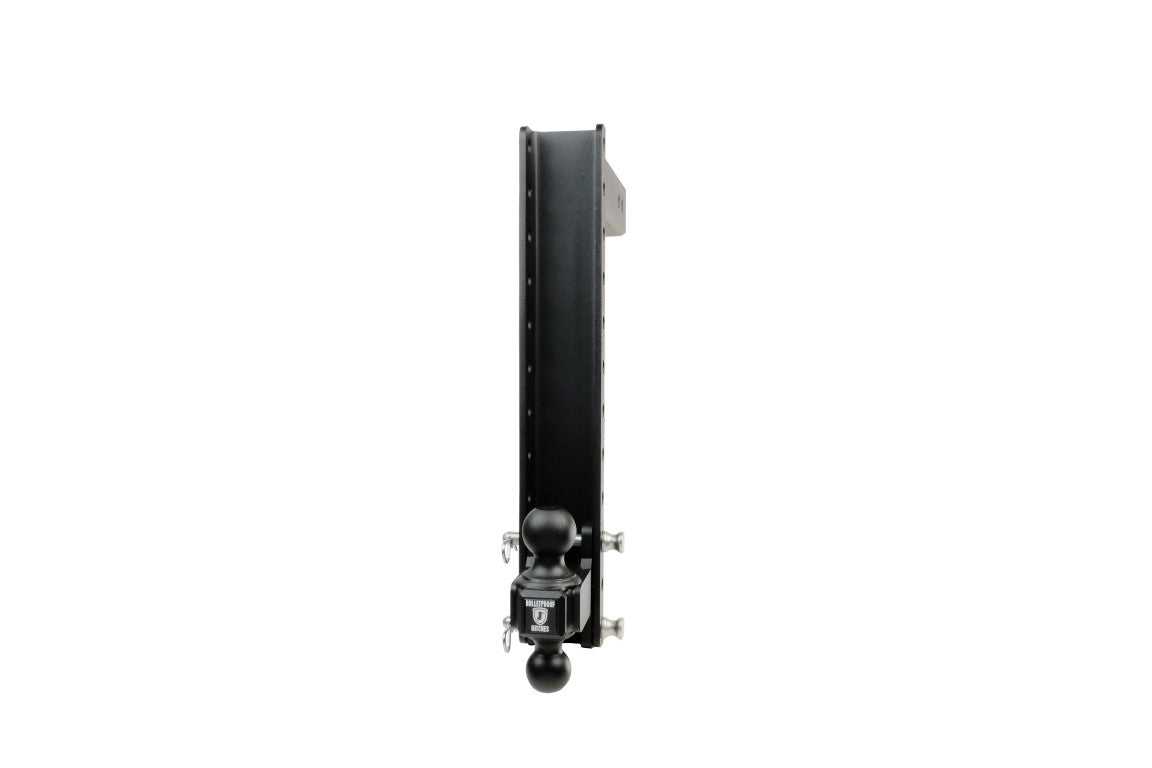

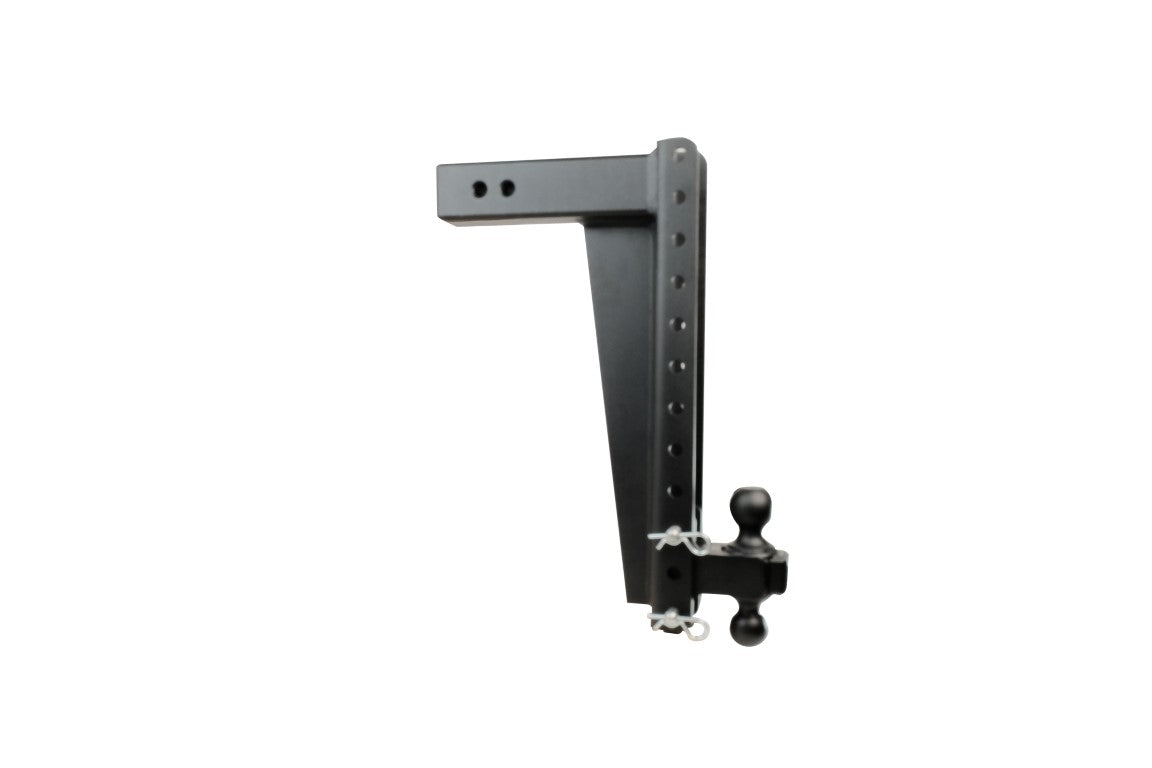

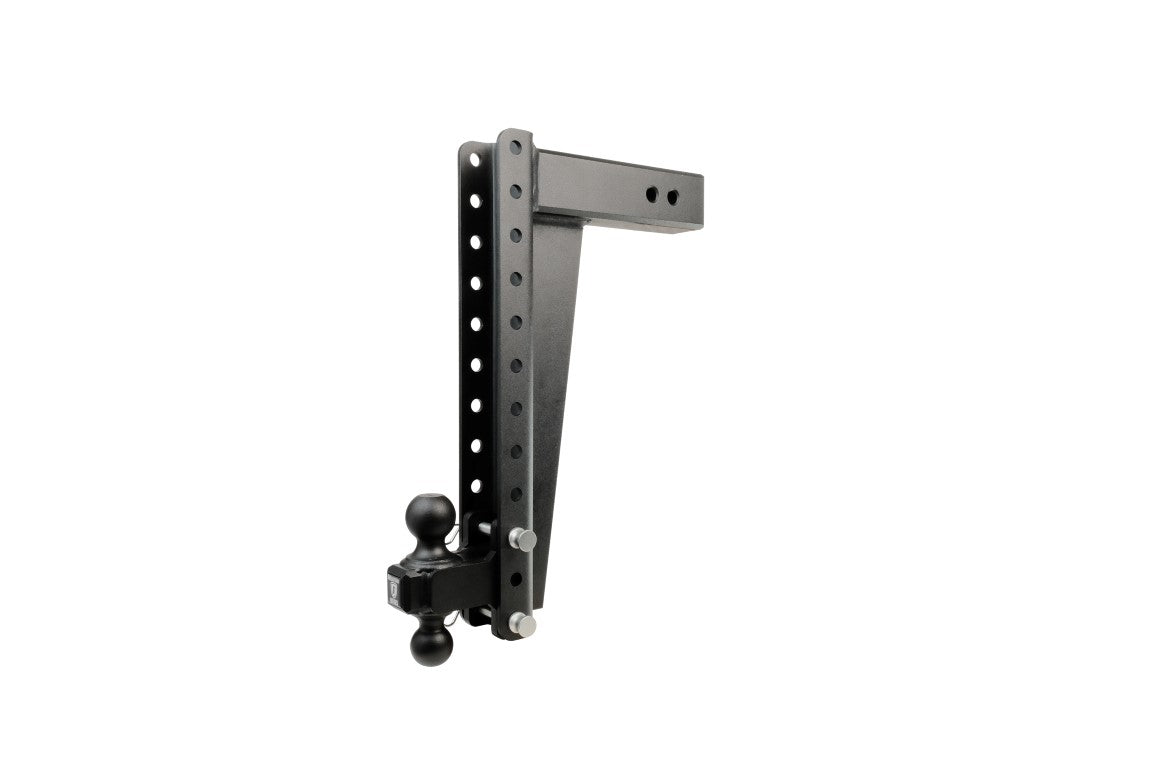

The BulletProof 3.0” Heavy Duty 18” Drop/Rise Hitch is THE ultimate choice for your lifted truck! Rated for towing up to 22,000 pounds trailer weight and 3,000 tongue weight in either the drop or the rise, this hitch can pull whatever you need it to. Whether you are towing your boat for a day on the water, taking your RV off the beaten path or need to get a skid steer to the job site, your BulletProof Hitch is ready to tackle any job.

With 10 ride heights, you can rest assured that you will be towing level even if you are riding on 40s (or larger)!  Our hitch comes standard with a 2” & 2-5/16” Dual Ball that can be adjusted in less than 10 seconds by simply removing the included 5/8” Corrosion Resistant Pins and R-Clips.

Our full line of compatible accessories ensures you are ready for any towing situation. Our Pintle Attachment allows you to tow your pintle trailer with your 2-5/16” Ball; our Step Attachment is a great choice for reaching into the bed of your truck now that it is lifted to the sky!  Farm towing is no issue when you use one of our Clevis Attachments.

For a hitch this robust, add the BulletProof Hitches Frame-Mounted Stabilizer Bars to really make a statement. Another great benefit of adding our stabilizer bars is they can be tightened to eliminate any slop or wobble for a solid connection.

When it comes to keeping your hitch secured onto your truck, we recommend using one of our BulletProof Locking Pins which are rated for the same high weight capacity as our hitch.  Please note, the hitch does not include the pin needed for the receiver of your truck.

Disclaimer for 3" Hitches: It is important to double check the size of the opening of your receiver tube before ordering your new BulletProof Hitch. 3" receivers are only found on some 2017 and newer Ford Truck models, such as F250, F350, F450, F550. Some Class C and Class A RVs may have a 3" receiver tube.

All BulletProof Hitches® are backed by our Lifetime, No Hassle Warranty allowing you to tow with confidence. BulletProof Hitches® are extensively tested and exceed SAE-J684 testing requirements. We are committed to building our products to such a high standard that we have never had a single failure.

The BulletProof 3.0” Heavy Duty 18” Drop/Rise Hitch is THE ultimate choice for your lifted truck! Rated for towing up to 22,000 pounds trailer weight and 3,000 tongue weight in either the drop or the rise, this hitch can pull whatever you need it to. Whether you are towing your boat for a day on the water, taking your RV off the beaten path or need to get a skid steer to the job site, your BulletProof Hitch is ready to tackle any job.

With 10 ride heights, you can rest assured that you will be towing level even if you are riding on 40s (or larger)!  Our hitch comes standard with a 2” & 2-5/16” Dual Ball that can be adjusted in less than 10 seconds by simply removing the included 5/8” Corrosion Resistant Pins and R-Clips.

Our full line of compatible accessories ensures you are ready for any towing situation. Our Pintle Attachment allows you to tow your pintle trailer with your 2-5/16” Ball; our Step Attachment is a great choice for reaching into the bed of your truck now that it is lifted to the sky!  Farm towing is no issue when you use one of our Clevis Attachments.

For a hitch this robust, add the BulletProof Hitches Frame-Mounted Stabilizer Bars to really make a statement. Another great benefit of adding our stabilizer bars is they can be tightened to eliminate any slop or wobble for a solid connection.

When it comes to keeping your hitch secured onto your truck, we recommend using one of our BulletProof Locking Pins which are rated for the same high weight capacity as our hitch.  Please note, the hitch does not include the pin needed for the receiver of your truck.

Disclaimer for 3" Hitches: It is important to double check the size of the opening of your receiver tube before ordering your new BulletProof Hitch. 3" receivers are only found on some 2017 and newer Ford Truck models, such as F250, F350, F450, F550. Some Class C and Class A RVs may have a 3" receiver tube.

All BulletProof Hitches® are backed by our Lifetime, No Hassle Warranty allowing you to tow with confidence. BulletProof Hitches® are extensively tested and exceed SAE-J684 testing requirements. We are committed to building our products to such a high standard that we have never had a single failure.
Product Specifications
3.0" Heavy Duty 18" Drop/Rise Hitch- Production Specifications
3.0" Heavy Duty 18" Drop/Rise Hitch- Production Specifications

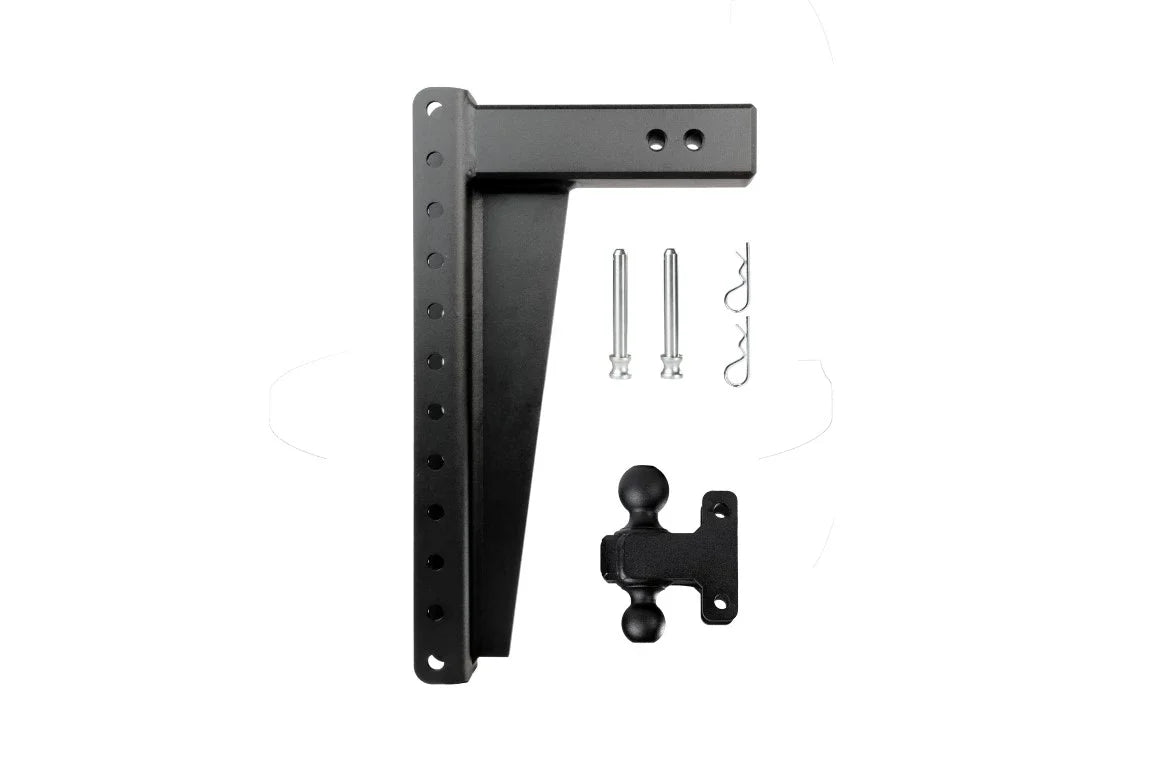

Parts Included
  • 3.0" Solid Steel Shank
  • 2 × 5/8" Corrosion Resistant Pins
  • 2 × R-Clips
  • 2" & 2-5/16" Ball Mount
  • 3.0" Solid Steel Shank
  • 2 × 5/8" Corrosion Resistant Pins
  • 2 × R-Clips
  • 2" & 2-5/16" Ball Mount
SOLID STEEL SHANK

The Heavy Duty and Extreme Duty hitch shanks are solid steel all the way through and have chamfered edges so that they can easily slide into & out of your hitch receiver. The solid steel shank also comes with two pin holes on the shank for more adjustment options.

The textured powder-coated finish creates a durable surface to help protect your hitch.

3.0" Heavy Duty 18" Drop/Rise Hitch- Shank Information

The Heavy Duty and Extreme Duty hitch shanks are solid steel all the way through and have chamfered edges so that they can easily slide into & out of your hitch receiver. The solid steel shank also comes with two pin holes on the shank for more adjustment options.

The textured powder-coated finish creates a durable surface to help protect your hitch.

3.0" Heavy Duty 18" Drop/Rise Hitch- Shank Information
HEAVY DUTY DUAL BALL MOUNT

Each adjustable mount includes a 2-ball platform, which fits in the adjustable channel. The 2 hitch balls are welded together onto the solid steel platform for maximum strength and stability.

3.0" Heavy Duty 18" Drop/Rise Hitch- HEAVY DUTY DUAL BALL MOUNT

Note: We can include any of the dual ball size combinations listed below with your hitch order.

Select the sizes needed for your dual ball from the options below.

Available Dual Ball Combinations Include:

  2" & 2-5/16" Dual Ball — No Additional Cost (Most Common Size)

Heavy Duty Sway Control Ball Mount — $74.95 Upgrade

  2" & 2-5/16" Dual Ball AND 1-7/8" Single Ball Mount — $119.95 Upgrade

Heavy Duty Dual Ball Weight Ratings

1-7/8" Ball: 8,000 lb Rating

2" Ball:  12,000 lb Rating

2-5/16" Ball:  22,000 lb Rating

Each adjustable mount includes a 2-ball platform, which fits in the adjustable channel. The 2 hitch balls are welded together onto the solid steel platform for maximum strength and stability.

3.0" Heavy Duty 18" Drop/Rise Hitch- HEAVY DUTY DUAL BALL MOUNT

Note: We can include any of the dual ball size combinations listed below with your hitch order.

Select the sizes needed for your dual ball from the options below.

Available Dual Ball Combinations Include:

  2" & 2-5/16" Dual Ball — No Additional Cost (Most Common Size)

Heavy Duty Sway Control Ball Mount — $74.95 Upgrade

  2" & 2-5/16" Dual Ball AND 1-7/8" Single Ball Mount — $119.95 Upgrade

Heavy Duty Dual Ball Weight Ratings

1-7/8" Ball: 8,000 lb Rating

2" Ball:  12,000 lb Rating

2-5/16" Ball:  22,000 lb Rating

SIGNATURE BLACK TEXTURED POWDER COAT

All BulletProof Hitches® feature a durable corrosion-resistant powder coat. This process starts with an aggressive sandblast to remove all impurities and create a clean surface for the powder coat. After the sandblast process, the hitch moves through a 5-stage pretreatment wash to remove any oil or residue. The metal itself is then sealed to eliminate the possibility of corrosion. The final step is an application of our signature black textured powder coat, which is applied by a Fanuc robot to ensure consistent thickness across the hitch.

All BulletProof Hitches® feature a durable corrosion-resistant powder coat.

All BulletProof Hitches® feature a durable corrosion-resistant powder coat. This process starts with an aggressive sandblast to remove all impurities and create a clean surface for the powder coat. After the sandblast process, the hitch moves through a 5-stage pretreatment wash to remove any oil or residue. The metal itself is then sealed to eliminate the possibility of corrosion. The final step is an application of our signature black textured powder coat, which is applied by a Fanuc robot to ensure consistent thickness across the hitch.

All BulletProof Hitches® feature a durable corrosion-resistant powder coat.
CNC Machining

The components of the BulletProof Hitch® are machined on our state-of-the-art Haas CNC machines. These CNC machines use Renishaw probes, allowing us to manufacture all of our parts to an extremely tight tolerance. This primarily ensures that each hitch and ball combination fit together without slop or excess movement when attached to your vehicle.

3.0" Heavy Duty 18" Drop/Rise Hitch- Shank Information

The components of the BulletProof Hitch® are machined on our state-of-the-art Haas CNC machines. These CNC machines use Renishaw probes, allowing us to manufacture all of our parts to an extremely tight tolerance. This primarily ensures that each hitch and ball combination fit together without slop or excess movement when attached to your vehicle.

3.0" Heavy Duty 18" Drop/Rise Hitch- Shank Information
Using our hitches in the Rise Position

All of our hitches can be used in the drop or rise position and maintain the same weight capacity in either position.

This 3.0" Heavy Duty 18" Drop/Rise Hitch has a max towing capacity of:
22,000 LBS and a tongue weight capacity of 3,000 LBS in both the drop & rise positions.

All of our hitches can be used in the drop or rise position and maintain the same weight capacity in either position.

This 3.0" Heavy Duty 18" Drop/Rise Hitch has a max towing capacity of:
22,000 LBS and a tongue weight capacity of 3,000 LBS in both the drop & rise positions.
